How can I get a price quote for Bosch Rexroth R036070000?

You can request a fast quote for Bosch Rexroth R036070000 from Yılsa Engineering. Reference part number YLSP7FWWNIT14QW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R036070000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R036070000 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R036070000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R036070000

Compact modules with ball rail systems and ball screw assembly, size 280, standard version

Bosch RexrothMFR # R036070000SKU # YLSP7FWWNIT14QW

Nominal size [mm]CKK-280

Linear axes variantBall screw assembly

Minimum travel range smin [mm]105

Maximum acceleration rate amax [m/s²]50.0

Max. length Lmax [mm]2500.0

Note: Lmaxwith screw support (SPU) Lmax = 5500 mm

Have questions?Chat on WhatsApp

About This Product

Compact modules with ball rail systems and ball screw assembly, size 280, standard version

Bosch Rexroth R036070000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size [mm]CKK-280

Linear axes variantBall screw assembly

Minimum travel range smin [mm]105

Note: Minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.5

Max. length Lmax [mm]2500.0

Note: Lmaxwith screw support (SPU) Lmax = 5500 mm

Dynamic load capacity, guideway Cgw [N]216700

Dynamic load capacity, fixed bearing Cfb [N]54000

Dynamic load capacity, ball screw assembly Cbs [N]54000

Dynamic torsional moment load capacity Mt [Nm]19500.0

Dynamic longitudinal moment load capacity ML [Nm]21670.0

Note: Dynamic longitudinal moment load capacity MLThe maximum values deviate for carriages with a variable centerline-to-centerline distance.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]5400

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]6000

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]5517

Maximum dynamic load in y-direction Fy max [N]55170

Maximum dynamic load in z1-direction Fz1 max [N]86685

Maximum dynamic load in z2-direction Fz2 max [N]60000

Planar moment of inertia about the y-axis ly [cm⁴]2683

Planar moment of inertia about the z-axis lz [cm⁴]15638

Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C

Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)loss of performance at 40 °C or higher

Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C

Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point

Weight [kg]0

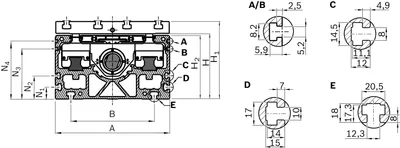

Dimension A [mm]280

Dimension B [mm]204

Dimension D1 [mm]80

Dimension d h7 [mm]25

Dimension D1 tolerance-0.01

Dimension H [mm]160.0

Dimension H1 [mm]190

Dimension H2 [mm]156

Dimension H3 [mm]92

Dimension K1M10

Dimension K2 thread depth [mm]20

Dimension K3 [mm]65

Dimension K4 [mm]100

Dimension K5 [mm]125

Dimension K6 [mm]154

Dimension L1 [mm]68

Dimension L2 [mm]63

Dimension L3 [mm]65

Dimension L4 [mm]4

Dimension L5 [mm]73

Dimension N1 [mm]29

Dimension N2 [mm]57

Dimension N3 [mm]123

Dimension N4 [mm]142

Documents & CAD

For this product 4

DatasheetSafety instructions for linear axes and electromechanical cylindersPDF·Al

DatasheetDeclaration of IncorporationPDF·English

DatasheetCompact modules CKK/CKRPDF·English
