Bosch Rexroth R036060000

Compact modules with ball rail systems and ball screw assembly, size 200, standard version

Bosch RexrothMFR # R036060000SKU # YLSHKY6MWAEEOBA

Nominal size [mm]CKK-200

Linear axes variantBall screw assembly

Minimum travel range smin [mm]80

Maximum acceleration rate amax [m/s²]50.0

Max. length Lmax [mm]2200.0

Note: LmaxWith screw support (SPU) Lmax = 5500 mm

Have questions?Chat on WhatsApp

About This Product

Compact modules with ball rail systems and ball screw assembly, size 200, standard version

Bosch Rexroth R036060000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size [mm]CKK-200

Linear axes variantBall screw assembly

Minimum travel range smin [mm]80

Note: Minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]1.58

Max. length Lmax [mm]2200.0

Note: LmaxWith screw support (SPU) Lmax = 5500 mm

Dynamic load capacity, guideway Cgw [N]121185

Dynamic load capacity, fixed bearing Cfb [N]26000

Dynamic load capacity, ball screw assembly Cbs [N]34200

Dynamic torsional moment load capacity Mt [Nm]7877.0

Dynamic longitudinal moment load capacity ML [Nm]10604.0

Note: Dynamic longitudinal moment load capacity MLThe maximum values deviate for carriages with a variable centerline-to-centerline distance.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]2750

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]3701

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]1744

Maximum dynamic load in y-direction Fy max [N]19925

Maximum dynamic load in z1-direction Fz1 max [N]42300

Maximum dynamic load in z2-direction Fz2 max [N]42300

Planar moment of inertia about the y-axis ly [cm⁴]550.5

Planar moment of inertia about the z-axis lz [cm⁴]3897

Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C

Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher

Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C

Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point

Weight [kg]0

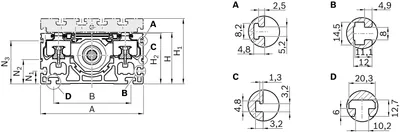

Dimension A [mm]200

Dimension B [mm]150

Dimension b P9 [mm]5

Dimension D1 [mm]68

Dimension d h7 [mm]16

Dimension D1 tolerance-0.01

Dimension D2 [mm]32

Dimension h [mm]3

Dimension H [mm]100.0

Dimension H1 [mm]127

Dimension H2 [mm]98.5

Dimension H3 [mm]56

Dimension K1M8

Dimension K2 thread depth [mm]12

Dimension K3 [mm]46

Dimension K4 [mm]90

Dimension K5 [mm]112

Dimension K6 [mm]85.5

Dimension L1 [mm]35

Dimension L2 [mm]47.5

Dimension L3 [mm]59.5

Dimension L4 [mm]28

Dimension L5 [mm]3.5

Dimension L7 [mm]14

Dimension L8 [mm]58

Dimension N1 [mm]25

Dimension N2 [mm]47.5

Dimension N3 [mm]84

Documents & CAD

For this product 4

DatasheetSafety instructions for linear axes and electromechanical cylindersPDF·Al

DatasheetCompact modules CKK/CKRPDF·English

DatasheetDeclaration of IncorporationPDF·English

DatasheetCompact modules CKK/CKRPDF·English
