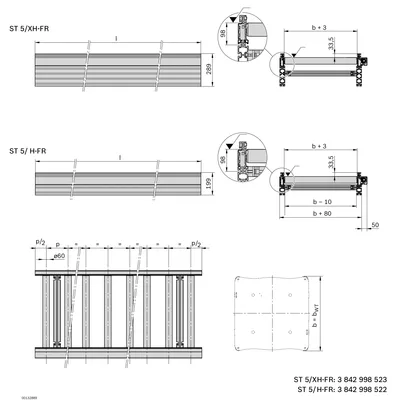

Bosch Rexroth 3842998523

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth 3842998523

ST 5/XH-FR conveyor unit

Bosch RexrothMFR # 3842998523SKU # YLSOHASYJMI2WBJ

Length max [l max] [mm]390

Length min [L min] [mm]4160

Number of rollers [N]3; 4; 5 ... 32

Workpiece pallet length [lWT] [mm]1040

Workpiece pallet length [lWT] [mm]455

Lateral guide material [LG]1 = Stahl

Share

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth 3842998523 (ST 5/XH-FR conveyor unit) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842998523 — price, stock availability and technical specifications.

Bosch Rexroth 3842998523

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Length max [l max] [mm]390

Length min [L min] [mm]4160

Number of rollers [N]3; 4; 5 ... 32

Workpiece pallet length [lWT] [mm]1040

Workpiece pallet length [lWT] [mm]455

Lateral guide material [LG]1 = Stahl

Lateral guide material [LG]2 = Kunststoff

Lateral guide material [LG]3 = Aluminium

Roller material [TR]1 = Stahl, verzinkt

Roller material [TR]2 = Stahl, nitrocarburiert

Material informationLateral guide: Steel, plastic or aluminum

Delivery informationReady-to-install

Workpiece pallet length [lWT] [mm]650

Material informationBevel wheel: Plastic or sintered metal

Workpiece pallet length [lWT] [mm]845

Preferred values [mm]1040

Preferred values [mm]455

Preferred values [mm]650

Preferred values [mm]845

Material informationRoller: Steel, galvanized or steel, nitrocarburized

Required accessoriesAS 5/... drive unit

Required accessoriesSZ 5/... leg set

Required accessoriesConnection Kits

Weight [kg]0

Documents & CAD

For this product 6

Datasheetp854062_en.pdfPDF·English

DatasheetFactory setting and wear limit of the clutchesPDF·English

DatasheetModular units for transfer system TS 5PDF·English

DatasheetDeclaration of Incorporation As defined by the EC Machinery Directive 2006/42/EC, Appendix II BPDF·Al

DatasheetTransport information for TS 5 (rollers)PDF·English

Technical DrawingCAD 3DPDF·English
