Bosch Rexroth 3842562346

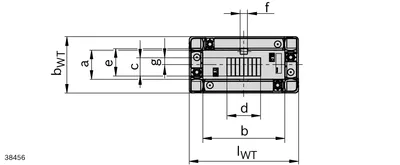

Workpiece pallet WT 2/LS 160x160
Dimension h [mm]88.5
Dimension [a] [mm]1.1
Dimension [b] [mm]88
Length [l] [mm]51
Dimension [c] [mm]33
Dimension [d] [mm]47
About This Product
Bosch Rexroth 3842562346 (Workpiece pallet WT 2/LS 160x160) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842562346 — price, stock availability and technical specifications.
Bosch Rexroth 3842562346
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension h [mm]88.5
Dimension [a] [mm]1.1
Dimension [b] [mm]88
Length [l] [mm]51
Dimension [c] [mm]33
Dimension [d] [mm]47
Force F [N]12.0
Dimension b [mm]23.1
Workpiece pallet length [lWT] [mm]160
Weight workpiece pallet [mWT] [kg]1.64
Magnetic rows1
Number [kkØ6]4x
Number [M5]4x
Weight (transported material) [kg]10
Scope of deliveryCarrying plates
Scope of deliveryConnection elements
Scope of deliveryFeed magnet with magnetic protection plate
Scope of deliveryFrame modules
Scope of deliveryMagnet stop protection
Scope of deliveryMeasuring magnet
Scope of deliveryPositioning bushings
Scope of deliveryRoller carrier with guide rollers
Delivery informationAssembled, individually packed with magnetic cover
NoticeNominal force refers to room temperature.
NoticeThe process force Fz can be increased by using the maximum possible load as a process force.
Process force Fx [N]0
Process force Fy [N]500
Process force FzFz = 100 N + Maximale Zuladung - Aktuelle Zuladung
Workpiece pallet width [bWT] [mm]160
Weight [kg]1.51
