How can I get a price quote for Bosch Rexroth 3842559434?

You can request a fast quote for Bosch Rexroth 3842559434 from Yılsa Engineering. Reference part number YLSUTPVAUHOPRXI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth 3842559434 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth 3842559434 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth 3842559434?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

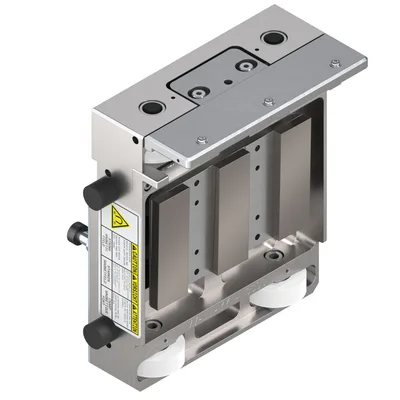

Bosch Rexroth 3842559434

Workpiece pallet with 3 magnets

Bosch RexrothMFR # 3842559434SKU # YLSUTPVAUHOPRXI

Mass [m] [kg]2.65

Speed150

Force F [N]160.0

Workpiece pallet total weight [mG] [kg]12.65

Output [W]275

Magnetic field strength [Gs]3,0 ... 1400,0

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth 3842559434 (Workpiece pallet with 3 magnets) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842559434 — price, stock availability and technical specifications.

Bosch Rexroth 3842559434

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mass [m] [kg]2.65

Speed150

Force F [N]160.0

Workpiece pallet total weight [mG] [kg]12.65

Output [W]275

Magnetic field strength [Gs]3,0 ... 1400,0

Positioning accuracy [mm]0.05

Force F1 [N]1290

Force F2 [N]645

Scope of deliveryProtective plate to shield magnetic field when workpiece pallet is removed

Delivery informationFully assembled

NoticeMax. speed values are orientation information and depend on the respective application

NoticeOrientation information, values depend on application

NoticePositioning accuracy values are orientation information and depend on the respective application

NoticeThe min. distance between two workpiece pallets depends on the workpiece pallet version and is measured from the center of one workpiece pallet to the center of the other workpiece pallet

Material informationBase body: Aluminum, anodized

Material informationCover: Thermoplastic film

Material informationGuide roller: POM

Material informationLubricating felt: SAE F1

Material informationMagnets: Neodymium

Material informationProtective plate: Polycarbonate (PC) + steel

Material informationSpacer: Chloroprene rubber (CR)

Recommended accessoriesData carrier

Recommended accessoriesFelt lubrication: ISO VG 46 food-grade lubricant

Weight [kg]4
