How can I get a price quote for Bosch Rexroth 3842553617?

You can request a fast quote for Bosch Rexroth 3842553617 from Yılsa Engineering. Reference part number YLS915OTUSLR04B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth 3842553617 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth 3842553617 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth 3842553617?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth 3842553617

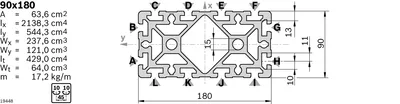

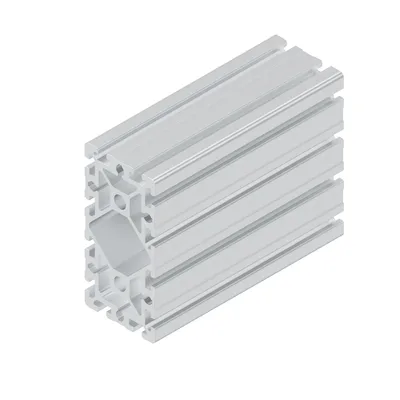

Strut profile 90x180, 3xL=6070mm

Bosch RexrothMFR # 3842553617SKU # YLS915OTUSLR04B

Condition on deliveryPackaging unit in standard length

Cross-section90x180

Modular dimension [mm]45

Profile slot10

ESDYes

Dimensions90x180

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth 3842553617 (Strut profile 90x180, 3xL=6070mm) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842553617 — price, stock availability and technical specifications.

Bosch Rexroth 3842553617

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Condition on deliveryPackaging unit in standard length

Cross-section90x180

Modular dimension [mm]45

Profile slot10

ESDYes

Dimensions90x180

Profile typeStandard

Open slots12.0

ColorNatural

Delivery unit3

Mass [m] [kg]17.2

Area moment of inertia in x-direction [lx] [cm⁴]2138.3

Area moment of inertia in y-direction [ly] [cm⁴]544.3

Profile surface [A] [cm²]63.6

Moment of resistance in the x-direction [Wx] [cm³]237.6

Moment of resistance in the y-direction [Wy] [cm³]121

Torsional moment of inertia [It] [cm⁴]429.0

Moment of torsion resistance [Wt] [cm³]64.0

Profile adaptionD17V: in slots A/H, B/G

Profile adaptionLF-S: in slots D/K, E/J

Profile adaptionLF: in slots A/H, B/G

Profile adaptionM16: in all core holes

Length [L]6070.0

Materialaluminum, anodized

Recommended accessoriesCover cap 90x90, black

Recommended accessoriesCover cap 90x90, signal gray

Recommended accessoriesCover cap with hole 90x90, black

Recommended accessoriesCover cap with hole 90x90, signal gray

Weight [kg]336.3

Documents & CAD

For this product 1

Datasheetp846240_en.pdfPDF·3.6 MB·English
