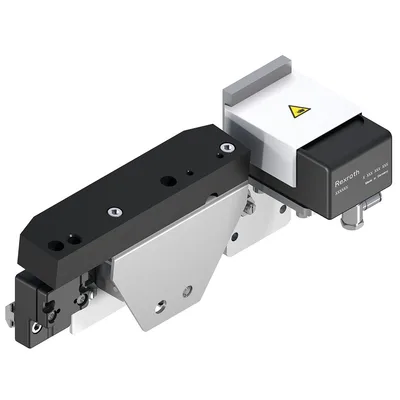

Bosch Rexroth 3842524448

WI 2/D Rocker

Bosch RexrothMFR # 3842524448SKU # YLSW5YU9AMPYK12

ESDYes

Mass [m] [kg]5

Workpiece pallet total weight [mG] [kg]100

Monitoring range, min [mm]430

Monitoring range, max [mm]1230

Scope of deliveryIncl. fastening material

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth 3842524448 (WI 2/D Rocker) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842524448 — price, stock availability and technical specifications.

Bosch Rexroth 3842524448

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ESDYes

Mass [m] [kg]5

Workpiece pallet total weight [mG] [kg]100

Monitoring range, min [mm]430

Monitoring range, max [mm]1230

Scope of deliveryIncl. fastening material

Scope of deliveryIncluding DA 2/100 damper

NoticeMax. total WT weight applies when infeeding from a transverse section into a main section; for area monitoring, only the max. system weight of 240 kg cannot be exceeded

NoticeMin. WT weight applies per rocker body

Required accessoriesSensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation

Required accessoriesSensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation

Recommended accessoriesAdditional MS rocker extension with second rocker and connecting strip for installation of a rocker positioned between the start and end of the conveyor section from a monitoring range of 400 mm.

Weight [kg]0.78
