How can I get a price quote for Baldor VJPFPM2550T-5?

You can request a fast quote for Baldor VJPFPM2550T-5 from Yılsa Engineering. Reference part number YLSDQ9KA9X0RGF8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VJPFPM2550T-5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VJPFPM2550T-5 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VJPFPM2550T-5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VJPFPM2550T-5

VJPFPM2550T-5

BaldorMFR # VJPFPM2550T-5SKU # YLSDQ9KA9X0RGF8

EnclosureODP

Frame365JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VJPFPM2550T-5 (VJPFPM2550T-5) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VJPFPM2550T-5 — price, stock availability and technical specifications.

Baldor VJPFPM2550T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame365JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Agency approvalsCULUS · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage90.000 A @ 575.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)90.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 6 AWG

Motor type4260M

Mounting arrangementF1

Number of poles2

Overall length33.35 IN

Power factor89

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3530 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568840412

Nameplate

Catalog numberVJPFPM2550T-5

Ingress protection (IP)23

Specification number42E338X105H2

Frame size365JP

Frequency (Hz)60

Horsepower (HP)100

Speed (rpm)3530

Voltage (V)575

Code letter (locked rotor kVA)F

Current (A)90

NEMA design letterB

Efficiency (%)93

Service factor1.15

Power factor89

Rating40C AMB-CONT

Drive end bearing6313

GreasePOLYREX EM

Opposite drive end bearing6311

Motor weight523

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 575 V, 60 Hz, 100 hp

Line-to-line resistance at 25 °C (ohms)0.0974 Ω

Temperature rise at rated load (°C)56° C

Temperature rise at service factor load (°C)68° C

Start configurationDOL

Breakdown torque505 lb-ft

Pull-up torque201 lb-ft

Locked-rotor torque244 lb-ft

Starting current (A)547 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	67	83	87	89	88	87	88
Efficiency %	0	91.9	94.1	93.9	93.2	92.1	90.6	92.5
Speed rpm	3599	3587	3572	3555	3536	3514	3490	3523
Line amps A	21.1	30.8	48.2	68.7	90.3	114	140	105
Power W	1474	20420	39921	59723	79779	100271	121548	92074
Torque lb-ft	0	36.8	74	111	148	185	222	170

Documents & CAD

For this product 3

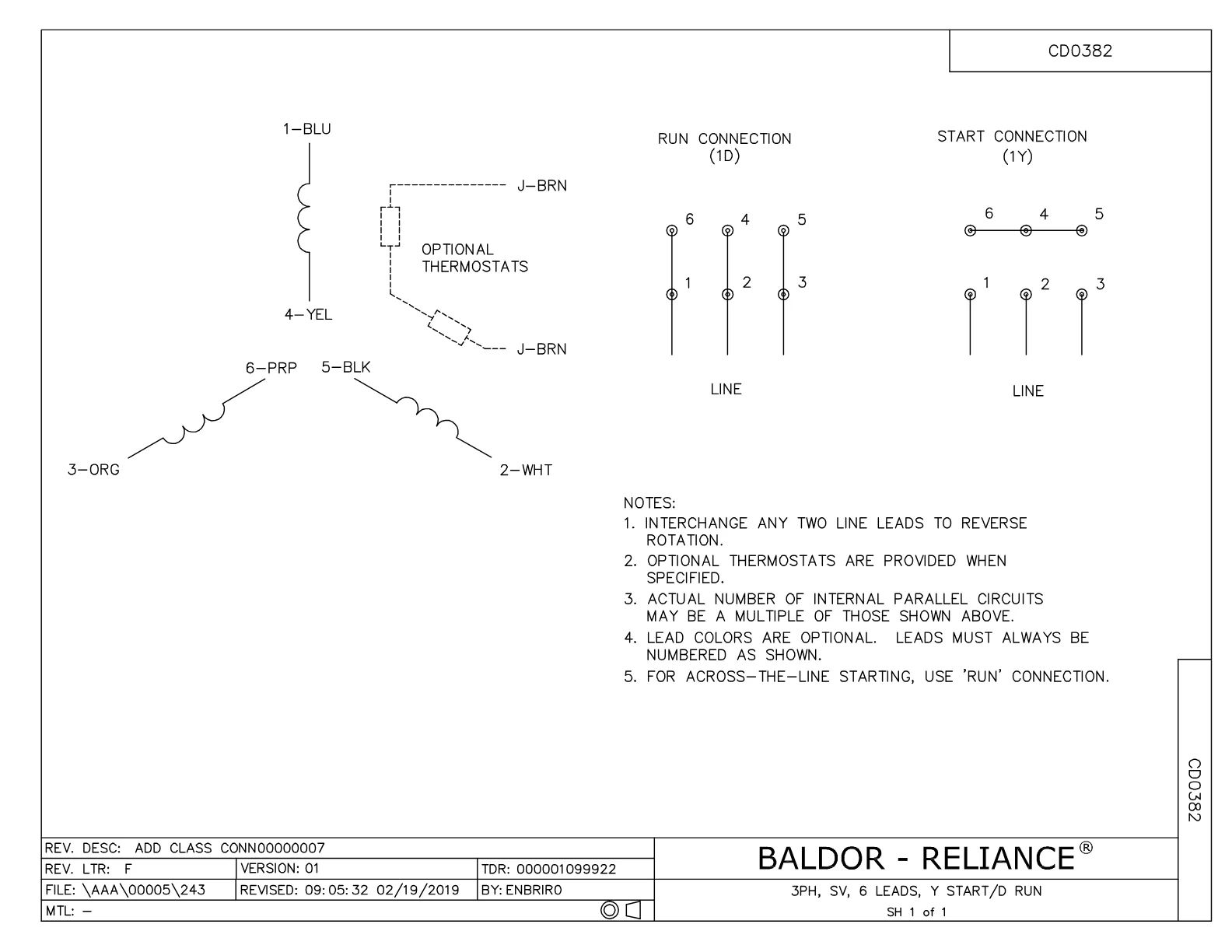

Wiring DiagramWiring DiagramPDF·37 KB·English

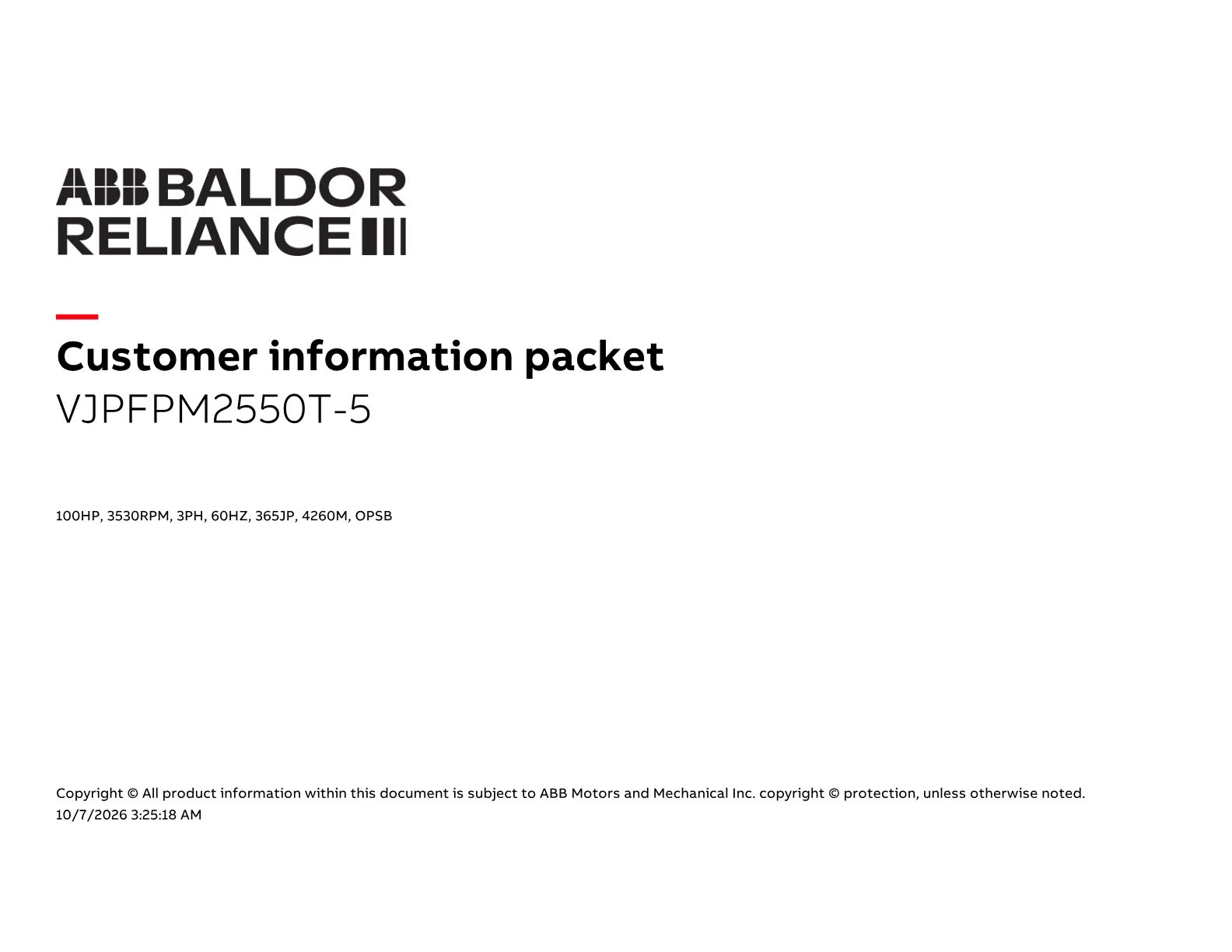

DatasheetDatasheetPDF·614 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

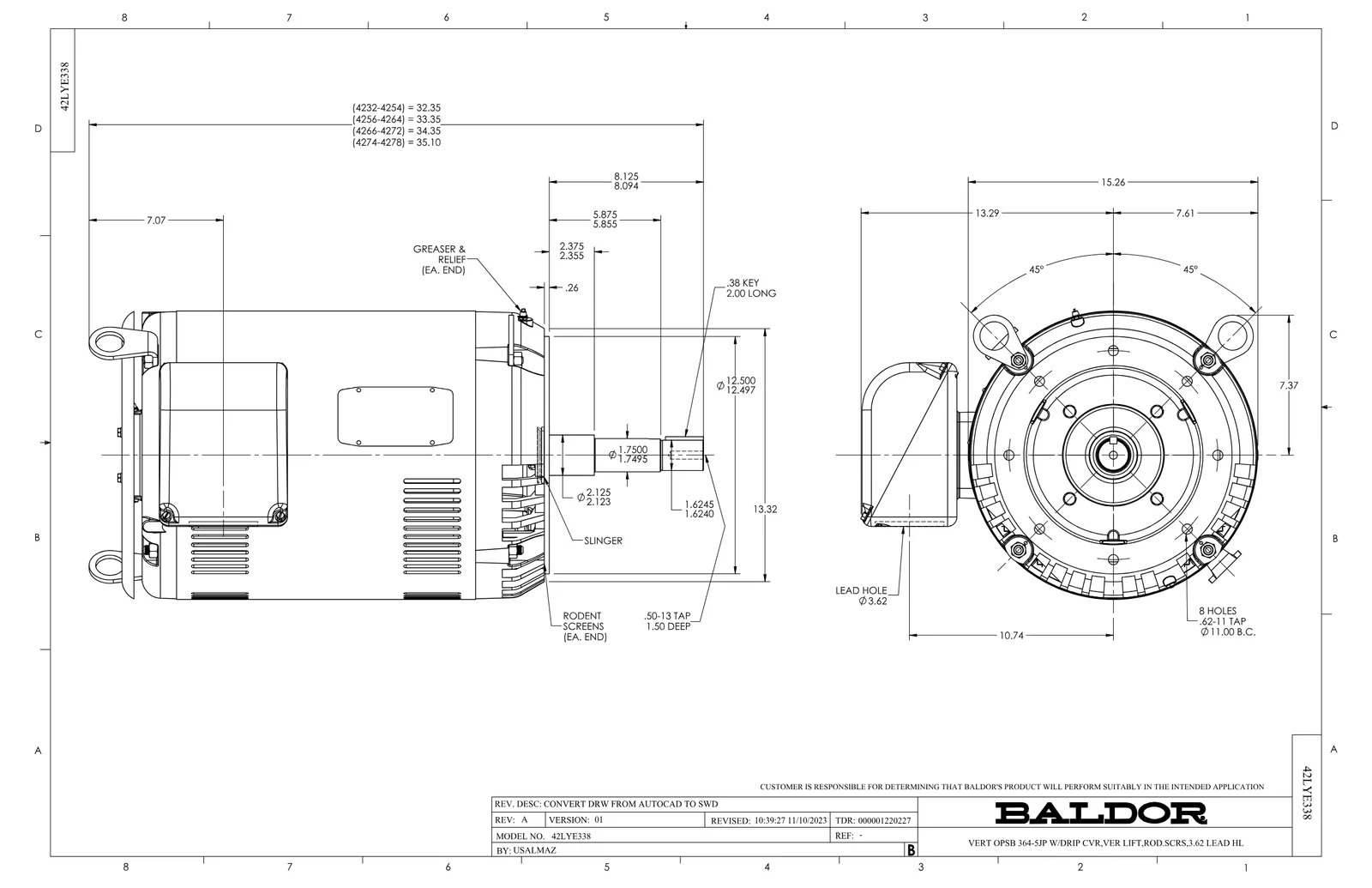

Dimension DrawingDimension SheetPDF·132 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VJPFPM2550T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
