How can I get a price quote for Baldor SUM71004SM-4?

You can request a fast quote for Baldor SUM71004SM-4 from Yılsa Engineering. Reference part number YLSWASL0ICC19BV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor SUM71004SM-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor SUM71004SM-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor SUM71004SM-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor SUM71004SM-4

SUM71004SM-4

BaldorMFR # SUM71004SM-4SKU # YLSWASL0ICC19BV

EnclosureTENV

Frame210TY

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor SUM71004SM-4 (SUM71004SM-4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor SUM71004SM-4 — price, stock availability and technical specifications.

Baldor SUM71004SM-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame210TY

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Phase3

Hazardous area class and groupCLI GP C,D

Hazardous area divisionNot Applicable

Agency approvalsCCSA US · CULUS

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Cable lengthNO CABLE

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingIP68

KVA codeH

Lifting lugsStandard Lifting Lugs

Motor typeM

Mounting arrangementV1

Number of poles4

Overall length34.54 IN

Product familyPump - Centrifugal

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter1.250 IN

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC781568895771

Nameplate

Catalog numberSUM71004SM-4

Specification numberS21-CWS0-0010

Frame sizeX215TY

Code letter (locked rotor kVA)H

TypeP

Insulation classF

Torque10:1_VT

NEMA design letterB

Drive end bearing60BC02JPP30A

EnclosureTENV

Duty15MIN

Phase3

Opposite drive end bearing30BC02JPG30A

Ambient temperature (°C)40

Nameplate number000613007MS

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·141 KB·English

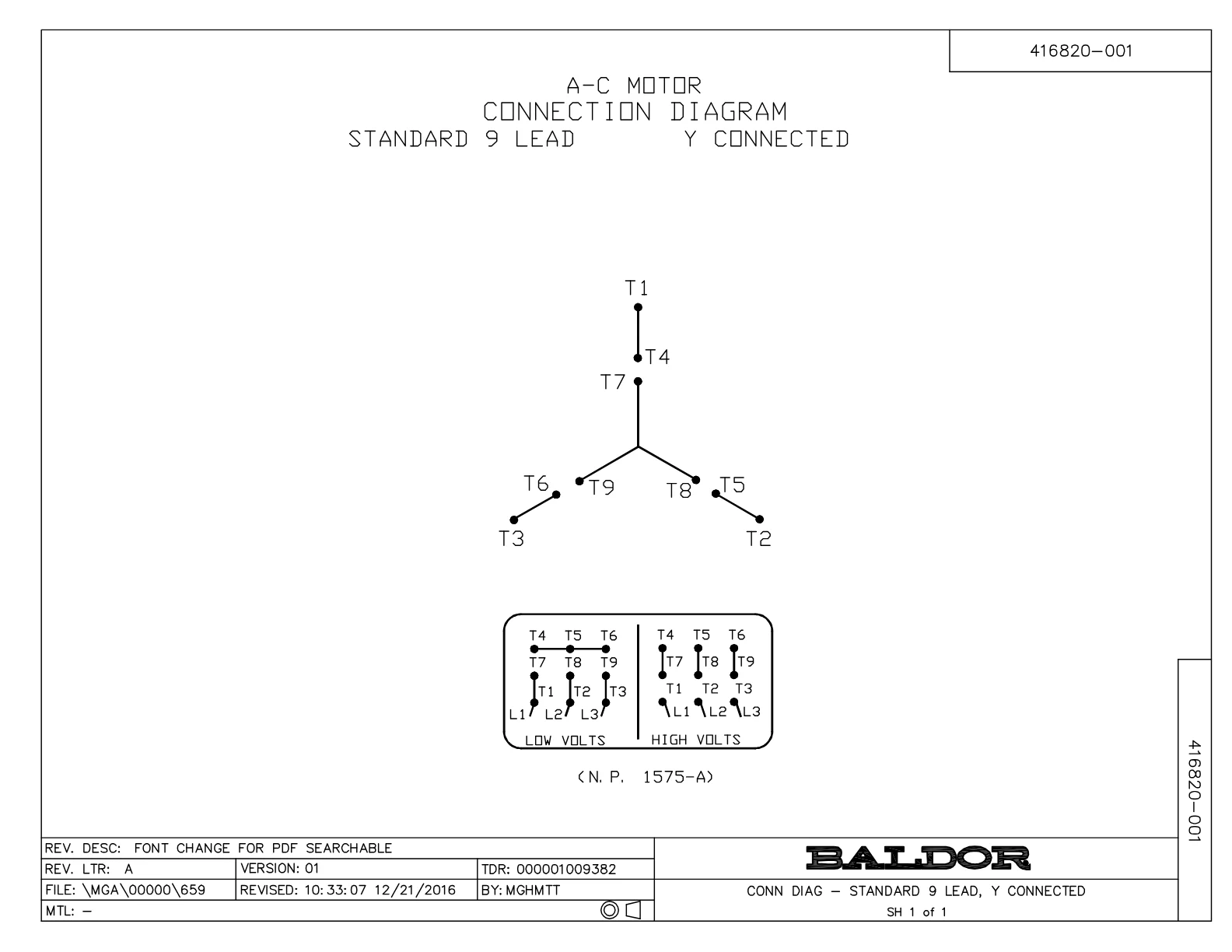

Wiring DiagramWiring DiagramPDF·32 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·694 KB·English

Series documents 3· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·112 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor SUM71004SM-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
421900144FU	406673000BF	3 pcs	20 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
064262012C	SEAL	1 pcs	44 motors
064262012D	SEAL - Mech Ceramic Seal	1 pcs	29 motors
421900092FU	ORING	1 pcs	29 motors
