Baldor IDDRPM362506R1

IDDRPM362506R1

BaldorMFR # IDDRPM362506R1SKU # YLS3Z6HRJON3QFW

EnclosureDPFV

FrameRL3698

Frame materialExposed Laminations

Frequency (Hz)40.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 @ 40 HZ · 250.000 HP @ 40 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor IDDRPM362506R1 (IDDRPM362506R1) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor IDDRPM362506R1 — price, stock availability and technical specifications.

Baldor IDDRPM362506R1

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL3698

Frame materialExposed Laminations

Frequency (Hz)40.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 @ 40 HZ · 250.000 HP @ 40 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 40 HZ

Voltage at frequency460.0 V @ 40 HZ · 460 V @ 40 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage298.000 A @ 460.0 V

Duty ratingCONT

Enclosure modificationFORCE VENT

Feedback deviceNO FEEDBACK

High voltage full load current (A)298.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF1

Overall length39.22 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.874 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1170 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568763391

Product TypeAC Variable Frequency & Servo Drives

Nameplate

Catalog numberIDDRPM362506R1

Specification numberP36R1323

Frame sizeRL 3698

Insulation classH

Phase3

Maximum safe speed (rpm)3750

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL6130A

EnclosureDP

Service factor1.00

Drive end bearing95BC02J30X

Enclosure modificationFORCE VENT

Opposite drive end bearing80BC03J30X

Nameplate number000613006MY

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·138 KB·English

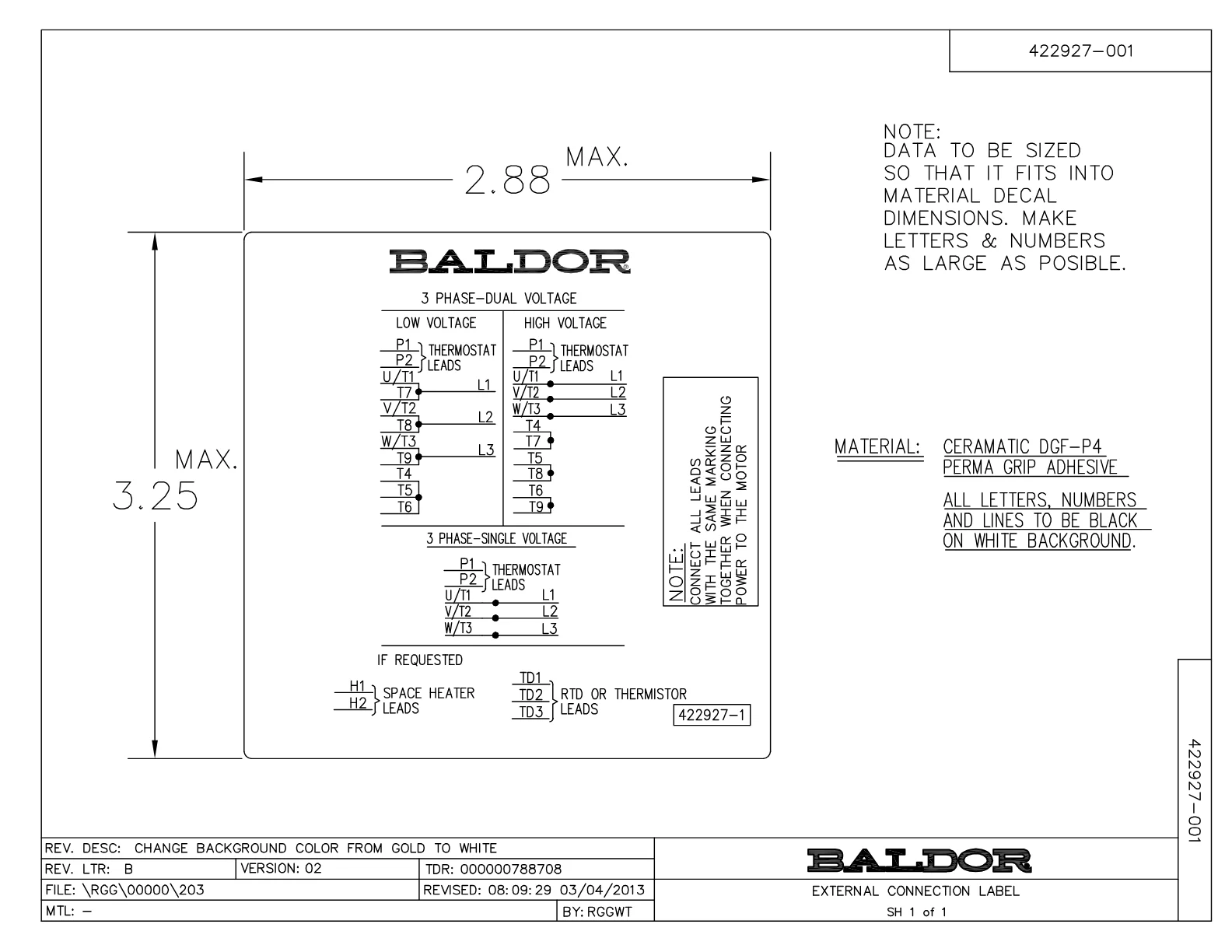

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·701 KB·English

Performance CurvePerformance CurvePDF·146 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor IDDRPM362506R1 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
