Baldor GS6026G

Right Angle Worm Gear Speed Reducer - Single Reduction, 60:1 Ratio, 2.63 in Center Distance, Solid Shaft, 0.7500 in Input Size, Left Hand Output

BaldorMFR # GS6026GSKU # YLSSLPTVIWPN569Discontinued

Output speed (rpm)29 rpm

Output typeRIGHT ANGLE

Reducer gear ratio60.000

Shaft configurationSOLID SHAFT

Sub-familyS

Input power0.82 HP

Have questions?Chat on WhatsApp

About This Product

Right Angle Worm Gear Speed Reducer - Single Reduction, 60:1 Ratio, 2.63 in Center Distance, Solid Shaft, 0.7500 in Input Size, Left Hand Output

Baldor GS6026G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output speed (rpm)29 rpm

Output typeRIGHT ANGLE

Reducer gear ratio60.000

Shaft configurationSOLID SHAFT

Sub-familyS

Input power0.82 HP

Output torque1166.00 lb-in

Product series900

UPC781568195659

Center Distance2.6300 in

Input TypeSolid Shaft

Input Size0.7500 in

Output Size1.1250 in

Output DirectionLeft Hand

Maximum Output RPM29.000 @ 1750 rpm input

Housing MaterialCast Iron

Overhung Load Capacity1100 lb

Housing Dimensions7.81 x 5.72 x 8 in

Housing Height8.00 in

Housing Length8.00 in

Housing Width5.72 in

IncludesKlubersynth UHI-6-460 Synthetic Oil

Manufacturer Reducer Size926

Mounting TypeBasic Gear Reducer Drive

Weight50.00 lbs

Documents & CAD

For this product 1

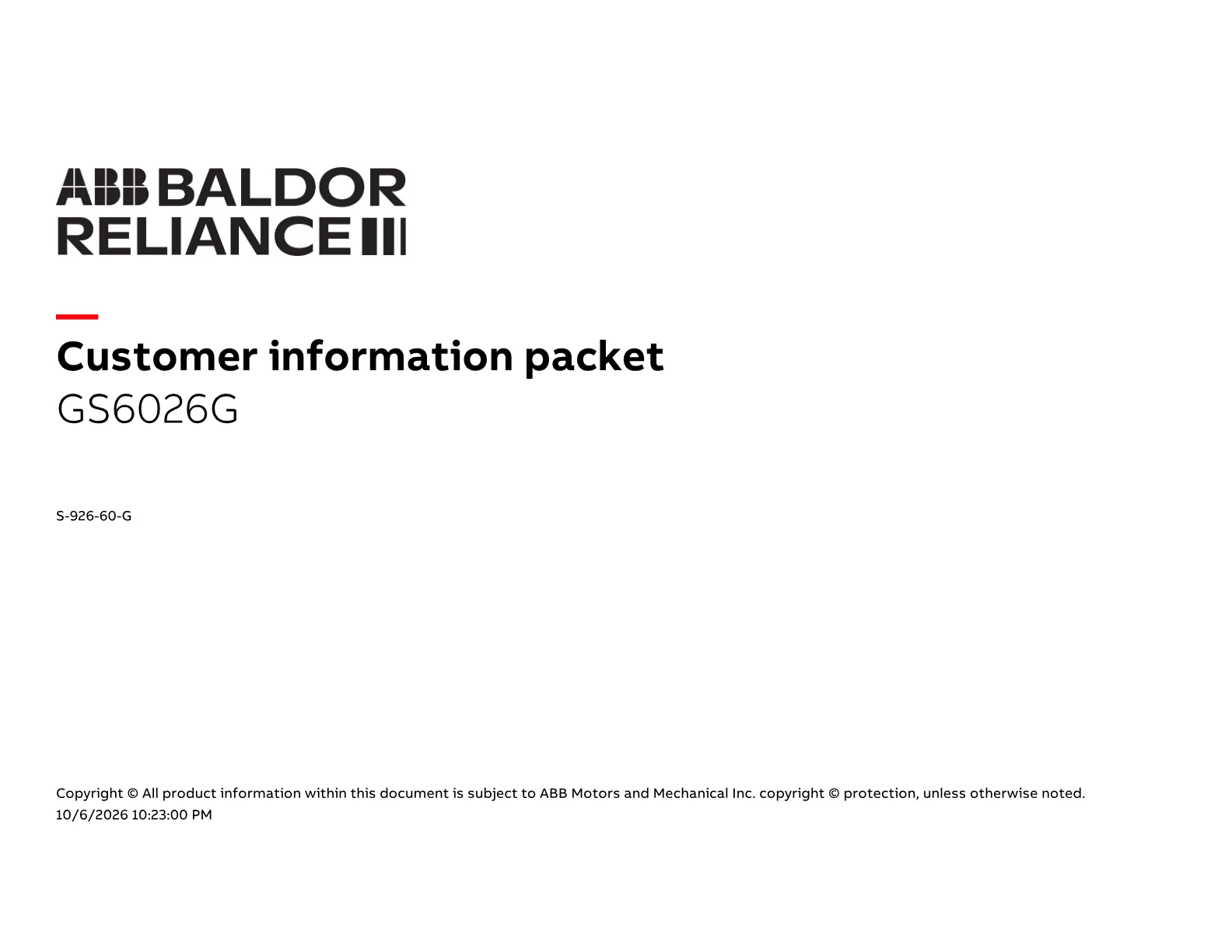

DatasheetDatasheetPDF·113 KB·English

Accessories 8

Genuine accessories that can be used with the Baldor GS6026G motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B26H71	BASE-HORIZONTAL POS. A/B 926	44 motors
B26V81	BASE-VERTICAL LOW POS. D/F 926	44 motors
B26V91	BASE-VERTICAL HIGH POS. C/E 926	44 motors
B26J92	BASE-INPUT VERTICAL POS. X/Y 926	44 motors
FL26HK	OUTPUT FLANGE KIT, STAMP STEEL 926	44 motors
SFL926B5	NEMA C FLG.KIT,COUPLING TYPE	6 motors
SFL926B7	NEMA C-FLG.KIT, COUPLING TYPE	6 motors
RBK26B5	RISER BLOCK KIT 56C/140TC 926	32 motors
