How can I get a price quote for Baldor GPF13514?

You can request a fast quote for Baldor GPF13514 from Yılsa Engineering. Reference part number YLS8ZEZ7D59Y73N. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor GPF13514 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor GPF13514 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor GPF13514?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

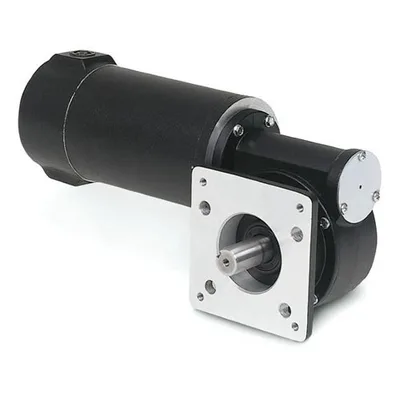

Baldor GPF13514

Right Angle Brushed DC Gearmotor - Right Angle Shaft, 8 :1 Ratio, 1/4 hp, 90 V, 312.0 rpm, TENV, Face Mount, Continuous Duty

BaldorMFR # GPF13514SKU # YLS8ZEZ7D59Y73N

Motor TypeBrushed

Shaft TypeRight Angle

Input Horsepower1/4 hp

Motor Supply Voltage90 V

Gear Ratio8 :1

Output RPM312.0 rpm

Have questions?Chat on WhatsApp

About This Product

Right Angle Brushed DC Gearmotor - Right Angle Shaft, 8 :1 Ratio, 1/4 hp, 90 V, 312.0 rpm, TENV, Face Mount, Continuous Duty

Features and Benefits

DCPM motor provides exceptional starting torque, adjustable speed, and predictable operating conditions
Ball bearing on output for smooth torque transmission
High strength bronze gearing with hardened and ground worm for quiet operation and increased radial load capacity
High performance low friction, bidirectional motor seals
Permanently lubricated with synthetic oil
Internal oil expansion bladder allows for multi-position mounting without the need to relocate breather vents
Class F insulation
