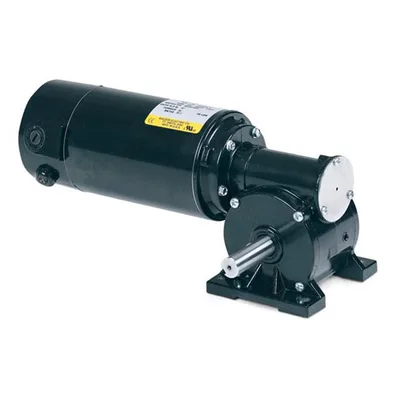

Baldor GP12514

Right Angle Brushed DC Gearmotor - Right Angle Shaft, 10 :1 Ratio, 1/12 hp, 90 V, 173.0 rpm, TENV, Foot Mount, Continuous Duty

BaldorMFR # GP12514SKU # YLS13WADT0ULKH9

Motor TypeBrushed

Shaft TypeRight Angle

Input Horsepower1/12 hp

Motor Supply Voltage90 V

Gear Ratio10 :1

Output RPM173.0 rpm

Have questions?Chat on WhatsApp

About This Product

Right Angle Brushed DC Gearmotor - Right Angle Shaft, 10 :1 Ratio, 1/12 hp, 90 V, 173.0 rpm, TENV, Foot Mount, Continuous Duty

Features and Benefits

Ball bearing on output for smooth torque transmission
High strength bronze gearing with hardened and ground worm for quiet operation and increased radial load capacity
High performance low friction, bidirectional motor seals
Permanently lubricated with synthetic oil
Internal oil expansion bladder allows for multi-position mounting without the need to relocate breather vents
Class F insulation
