Baldor GF3024AJ

Right Angle Worm Gear Speed Reducer - Single Reduction, 30:1 Ratio, 2.38 in Center Distance, C-Face Quill, 0.6300 in Input Size, Right Hand Output, 56C Frame

BaldorMFR # GF3024AJSKU # YLSMI22EHNR8Z7YDiscontinued

Motor mount56C

Output speed (rpm)58 rpm

Output typeRIGHT ANGLE

Reducer gear ratio30.000

Shaft configurationSOLID SHAFT

Sub-familyF

Have questions?Chat on WhatsApp

About This Product

Right Angle Worm Gear Speed Reducer - Single Reduction, 30:1 Ratio, 2.38 in Center Distance, C-Face Quill, 0.6300 in Input Size, Right Hand Output, 56C Frame

Baldor GF3024AJ

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor mount56C

Output speed (rpm)58 rpm

Output typeRIGHT ANGLE

Reducer gear ratio30.000

Shaft configurationSOLID SHAFT

Sub-familyF

Input power1.32 HP

Output torque1111.00 lb-in

Product series900

UPC781568435731

Center Distance2.3800 in

Input TypeC-Face Quill

Input Size0.6250 in

Output Size1.1250 in

Output DirectionRight Hand

NEMA / IEC Frame Size56C

Maximum Output RPM58.000 @ 1750 rpm input

Housing MaterialCast Iron

Overhung Load Capacity1000 lb

Housing Dimensions6.44 x 5.09 x 6.94 in

Housing Height6.94 in

Housing Length6.94 in

Housing Width5.09 in

IncludesKlubersynth UHI-6-460 Synthetic Oil

Manufacturer Reducer Size924

Weight40.00 lbs

Documents & CAD

For this product 1

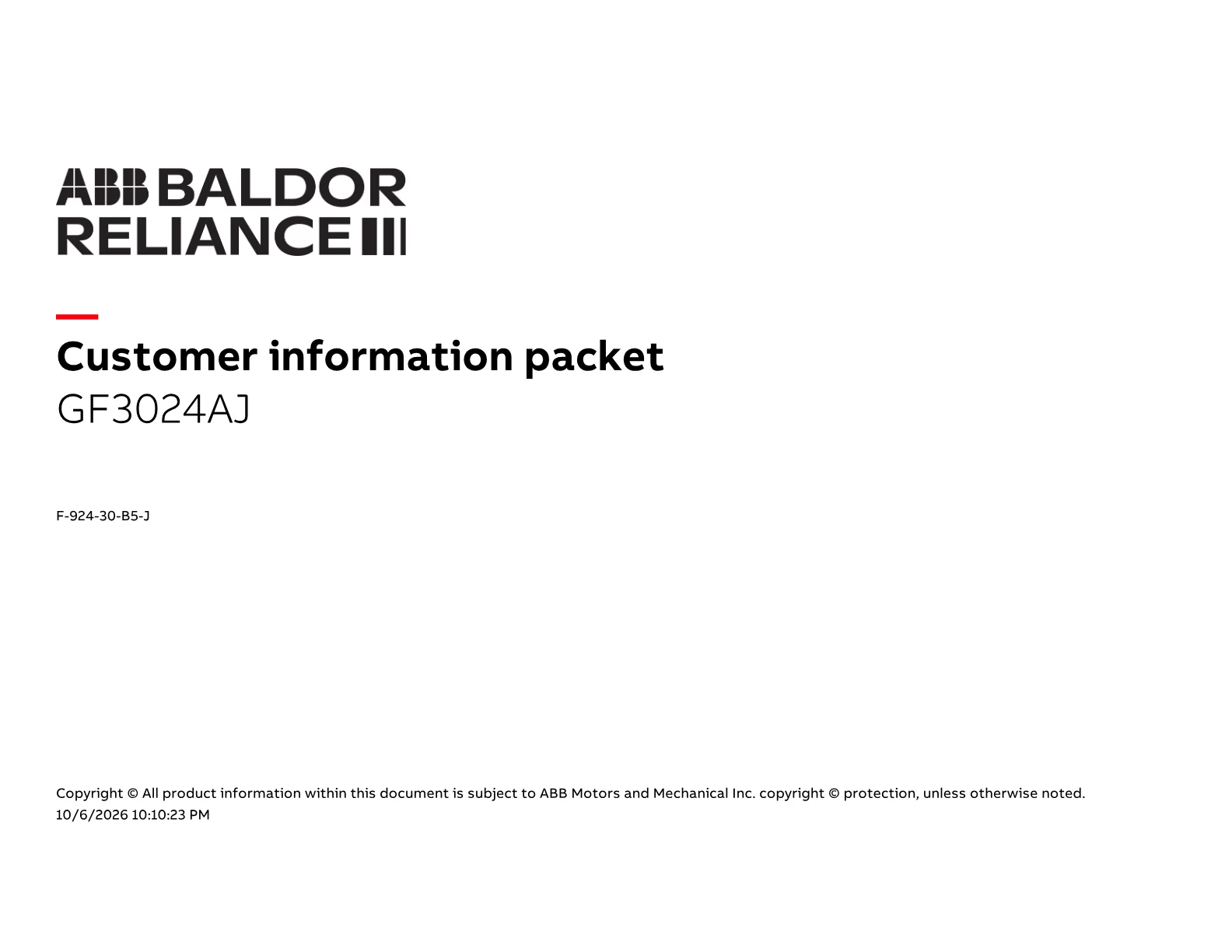

DatasheetDatasheetPDF·113 KB·English

Accessories 6

Genuine accessories that can be used with the Baldor GF3024AJ motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B24H71	BASE-HORIZONTAL POS. A/B 924	28 motors
B24V81	BASE-VERTICAL LOW POS. D/F 924	28 motors
B24V91	BASE-VERTICAL HIGH POS. C/E 924	28 motors
B24J92	BASE-INPUT VERTICAL POS. X/Y 924	28 motors
FL24HK	OUTPUT FLANGE KIT, STAMP STEEL 924	28 motors
RBK24B5	RISER BLOCK KIT 56C/140TC 924	19 motors
