Baldor GF1530CG

Baldor GF1530CG (F-930-15-B9-G) is a right angle worm gear reducer.

BaldorMFR # GF1530CGSKU # YLSVPIDGSMII0Discontinued

Motor mount180TC

Output speed (rpm)117 rpm

Output typeRIGHT ANGLE

Reducer gear ratio15.000

Shaft configurationSOLID SHAFT

Sub-familyF

Have questions?Chat on WhatsApp

About This Product

Baldor GF1530CG (F-930-15-B9-G) is a right angle worm gear reducer.

Baldor GF1530CG

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor mount180TC

Output speed (rpm)117 rpm

Output typeRIGHT ANGLE

Reducer gear ratio15.000

Shaft configurationSOLID SHAFT

Sub-familyF

Input power4.14 HP

Output torque1903.00 lb-in

Product series900

UPC781568526361

Documents & CAD

For this product 1

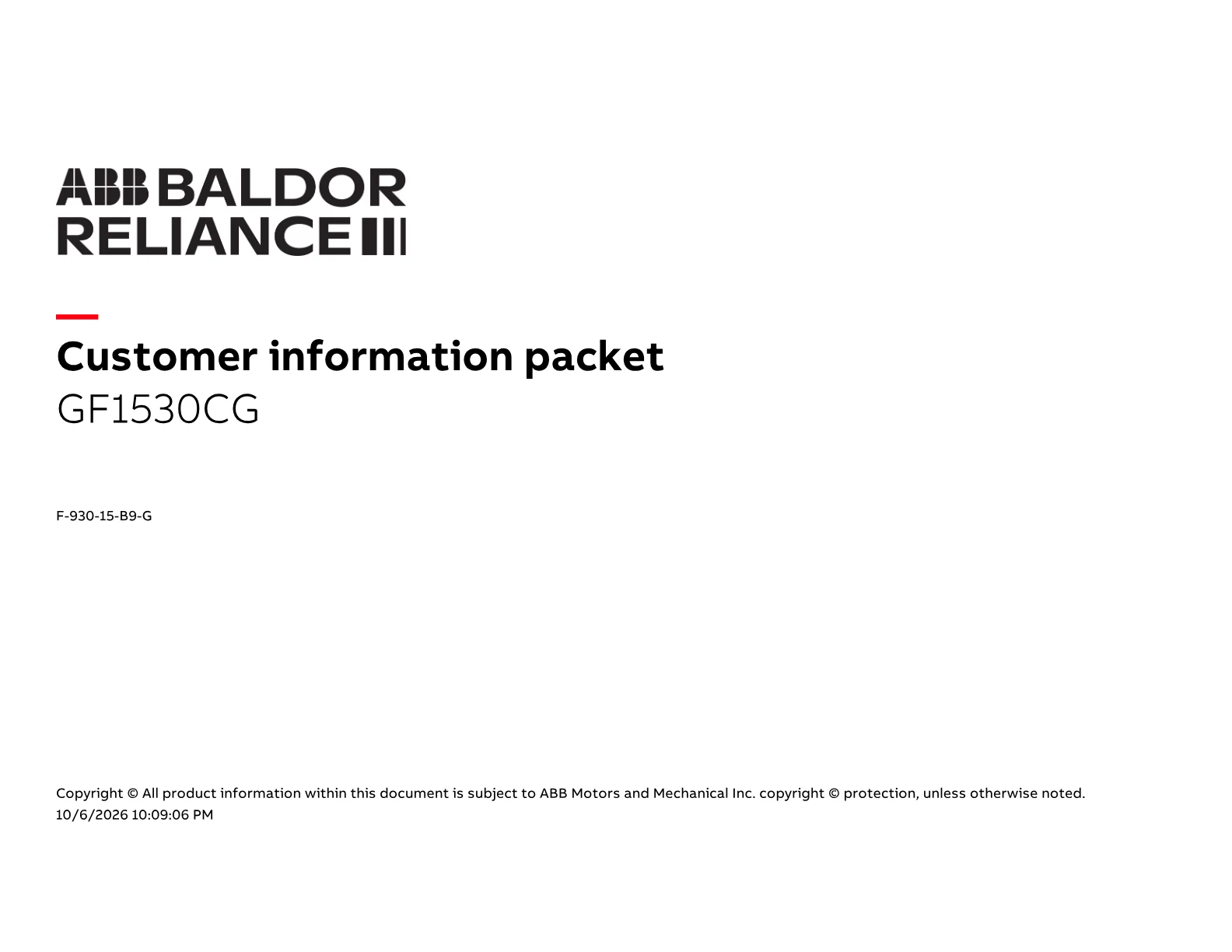

DatasheetDatasheetPDF·113 KB·English

Accessories 5

Genuine accessories that can be used with the Baldor GF1530CG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B30H71	BASE-HORIZONTAL POS. A/B 930	24 motors
B30V81	BASE-VERTICAL LOW POS. D/F 930	15 motors
B30V91	BASE-VERTICAL HIGH POS. C/E 930	15 motors
FL30HK	OUTPUT FLANGE KIT, STAMP STEEL 930	24 motors
RBK30B9	RISER BLOCK KIT 180TC 930	5 motors
