Baldor FPM2563TS-4

FPM2563TS-4

BaldorMFR # FPM2563TS-4SKU # YLSU2G5F2UN9ZGX

EnclosureODP

Frame445TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ · 150.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor FPM2563TS-4 (FPM2563TS-4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor FPM2563TS-4 — price, stock availability and technical specifications.

Baldor FPM2563TS-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame445TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ · 150.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCULUS · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage205.000 A @ 380.0 V · 224.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)205.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size12 @ 6 AWG

Motor typeA44060M

Mounting arrangementF1

Number of poles4

Overall length35.88 IN

Power factor88

Product familyOther

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1480 rpm · 1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568812013

Nameplate

Catalog numberFPM2563TS-4

Specification numberP44G1852

Frame size445TS

Frequency (Hz)60

Horsepower (HP)200

Speed (rpm)1780

Frequency (Hz)50

Horsepower (HP)150

Speed (rpm)1480

Voltage (V)460

Code letter (locked rotor kVA)F

Voltage (V)380

Code letter (locked rotor kVA)G

Current (A)224

NEMA design letterB

Current (A)205

NEMA design letterB

Efficiency (%)95

Service factor1.15

Power factor88

Efficiency (%)94.8

Service factor1.15

Power factor87

Rating40C AMB-CONT

Drive end bearing65BC03J30X

GreasePOLYREX EM

Opposite drive end bearing65BC03J30X

Insulation classF

Phase3

EnclosureDP

CC number010A

Nameplate numberNP3488L

Documents & CAD

For this product 3

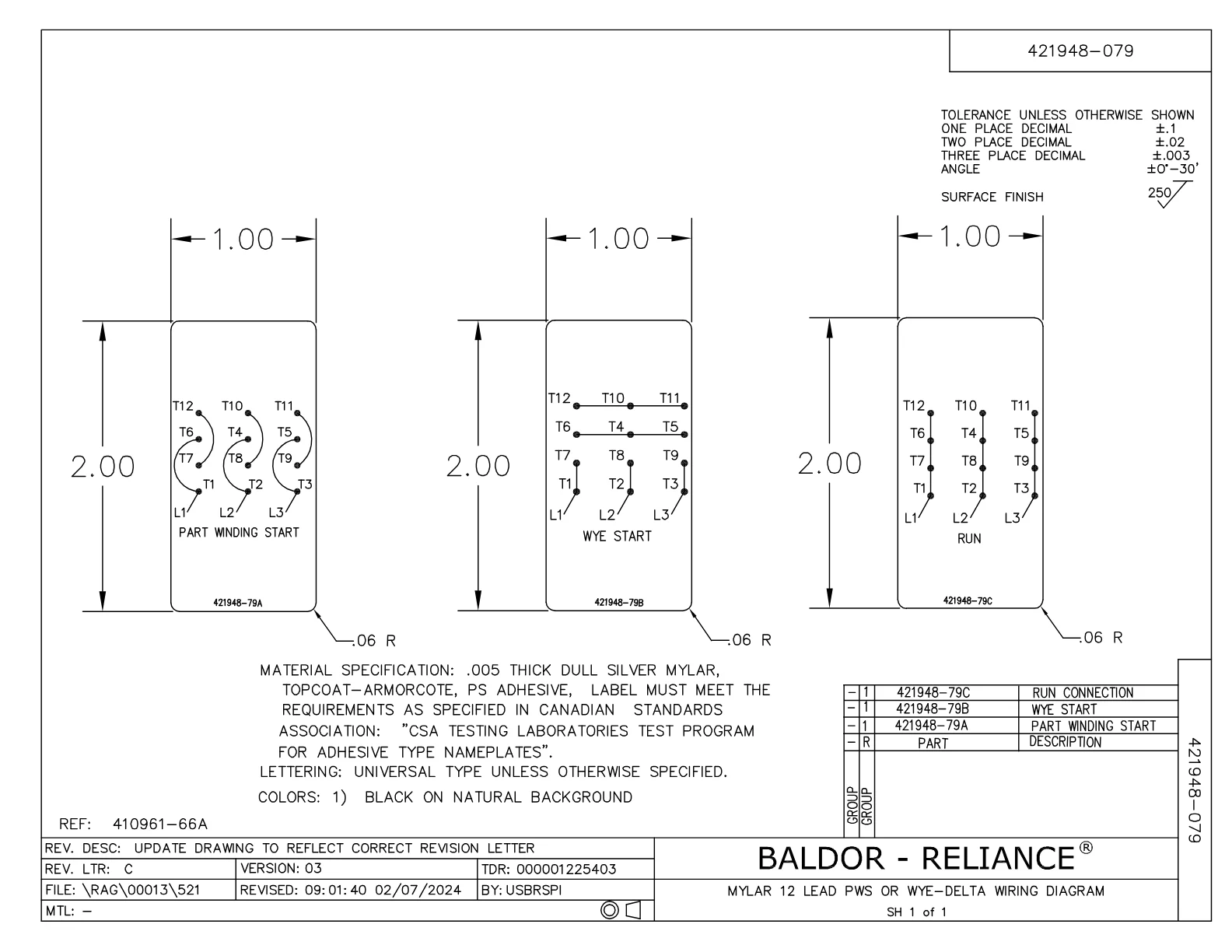

Wiring DiagramWiring DiagramPDF·56 KB·English

DatasheetDatasheetPDF·652 KB·English

Performance CurvePerformance CurvePDF·96 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·136 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor FPM2563TS-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
