How can I get a price quote for Baldor FPM2559TS-4?

You can request a fast quote for Baldor FPM2559TS-4 from Yılsa Engineering. Reference part number YLSRTYPNCUNR0OX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor FPM2559TS-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor FPM2559TS-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor FPM2559TS-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor FPM2559TS-4

FPM2559TS-4

BaldorMFR # FPM2559TS-4SKU # YLSRTYPNCUNR0OX

EnclosureOPSB

Frame405TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 50 HZ · 125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor FPM2559TS-4 (FPM2559TS-4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor FPM2559TS-4 — price, stock availability and technical specifications.

Baldor FPM2559TS-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame405TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 50 HZ · 125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage141.000 A @ 380.0 V · 145.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)141.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 2 AWG

Motor type4476M

Mounting arrangementF1

Number of poles4

Overall length33.59 IN

Power factor85

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1475 rpm · 1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811993

Nameplate

Catalog numberFPM2559TS-4

Ingress protection (IP)23

Specification number44E020W359H2

Frame size405TS

Frequency (Hz)60

Horsepower (HP)125

Speed (rpm)1775

Frequency (Hz)50

Horsepower (HP)100

Speed (rpm)1475

Voltage (V)460

Code letter (locked rotor kVA)F

Voltage (V)380

Code letter (locked rotor kVA)F

Current (A)145

NEMA design letterB

Current (A)141

NEMA design letterB

Efficiency (%)94.5

Service factor1.15

Power factor85

Efficiency (%)94.1

Service factor1.15

Power factor85

Rating40C AMB-CONT

Drive end bearing6313

GreasePOLYREX EM

Opposite drive end bearing6312

Motor weight595

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 125 hp

Line-to-line resistance at 25 °C (ohms)0.0453 Ω

Temperature rise at rated load (°C)48° C

Temperature rise at service factor load (°C)58° C

Start configurationDOL

Breakdown torque991 lb-ft

Pull-up torque385 lb-ft

Locked-rotor torque490 lb-ft

Starting current (A)845 A

Line-to-line resistance at 25 °C (ohms)0.0453 Ω

Temperature rise at rated load (°C)45° C

Temperature rise at service factor load (°C)55° C

Start configurationDOL

Breakdown torque962 lb-ft

Pull-up torque406 lb-ft

Locked-rotor torque517 lb-ft

Starting current (A)829 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	58	77	83	85	85	84	85
Efficiency %	0	92.6	95.2	95.1	94.6	93.9	93	94.2
Speed rpm	1799	1795	1790	1784	1777	1769	1761	1772
Line amps A	42.8	55.1	80.2	111	145	182	223	167
Power W	1705	25427	49431	73820	98455	123428	149031	113439
Torque lb-ft	0	92.3	185	277	369	461	554	424

Documents & CAD

For this product 3

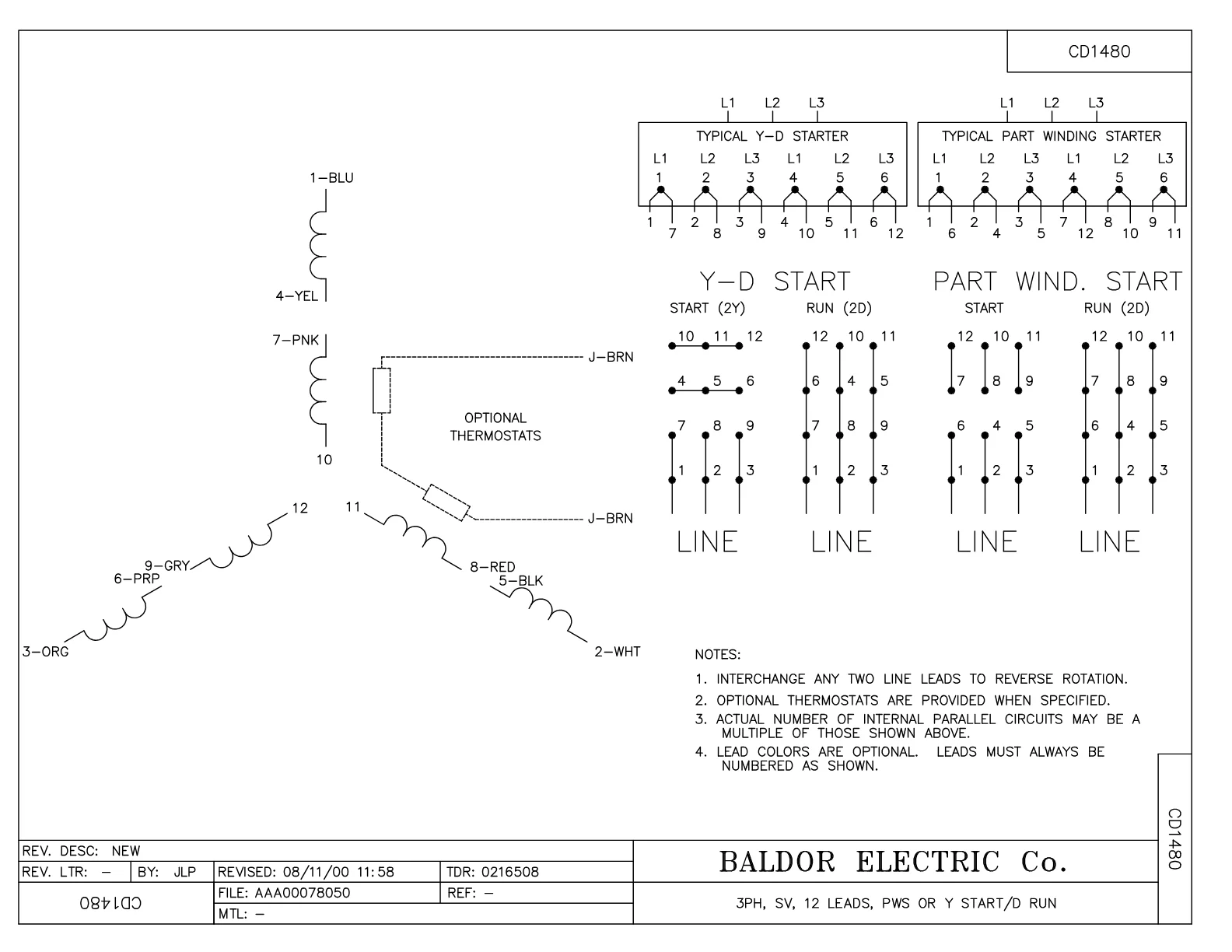

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·710 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·128 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor FPM2559TS-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	8 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
