Baldor EM31116A

EM31116A

BaldorMFR # EM31116ASKU # YLST03057B6LOR8

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EM31116A (EM31116A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EM31116A — price, stock availability and technical specifications.

Baldor EM31116A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.500 A @ 460.0 V · 3.000 A @ 230.0 V · 3.100 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 18 AWG

Motor type3520M

Mounting arrangementF1

Number of poles4

Overall length11.07 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568775936

Nameplate

Catalog numberEM31116A

Specification number35B011G278G2

Horsepower (HP)1

Voltage (V)230/460

Current (A)3.2/1.6

Speed (rpm)1760

Frame size56

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)N

NEMA design letterB

Insulation classF

Full load average efficiency (%)85.5

Power factor67

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP3273L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)16.9 Ω

Temperature rise at rated load (°C)22° C

Temperature rise at service factor load (°C)25° C

Start configurationDOL

Breakdown torque13.7 lb-ft

Pull-up torque8.1 lb-ft

Locked-rotor torque9.4 lb-ft

Starting current (A)14.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	8	28	45	58	67	74	78	71
Efficiency %	0	70.1	81.1	84.5	85.5	85.7	85.3	85.6
Speed rpm	1799	1793	1787	1780	1774	1767	1759	1770
Line amps A	1.17	1.2	1.3	1.44	1.63	1.85	2.1	1.76
Power W	77	267	463	664	872	1089	1311	1002
Torque lb-ft	0	0.74	1.48	2.22	2.96	3.72	4.48	3.42

Documents & CAD

For this product 3

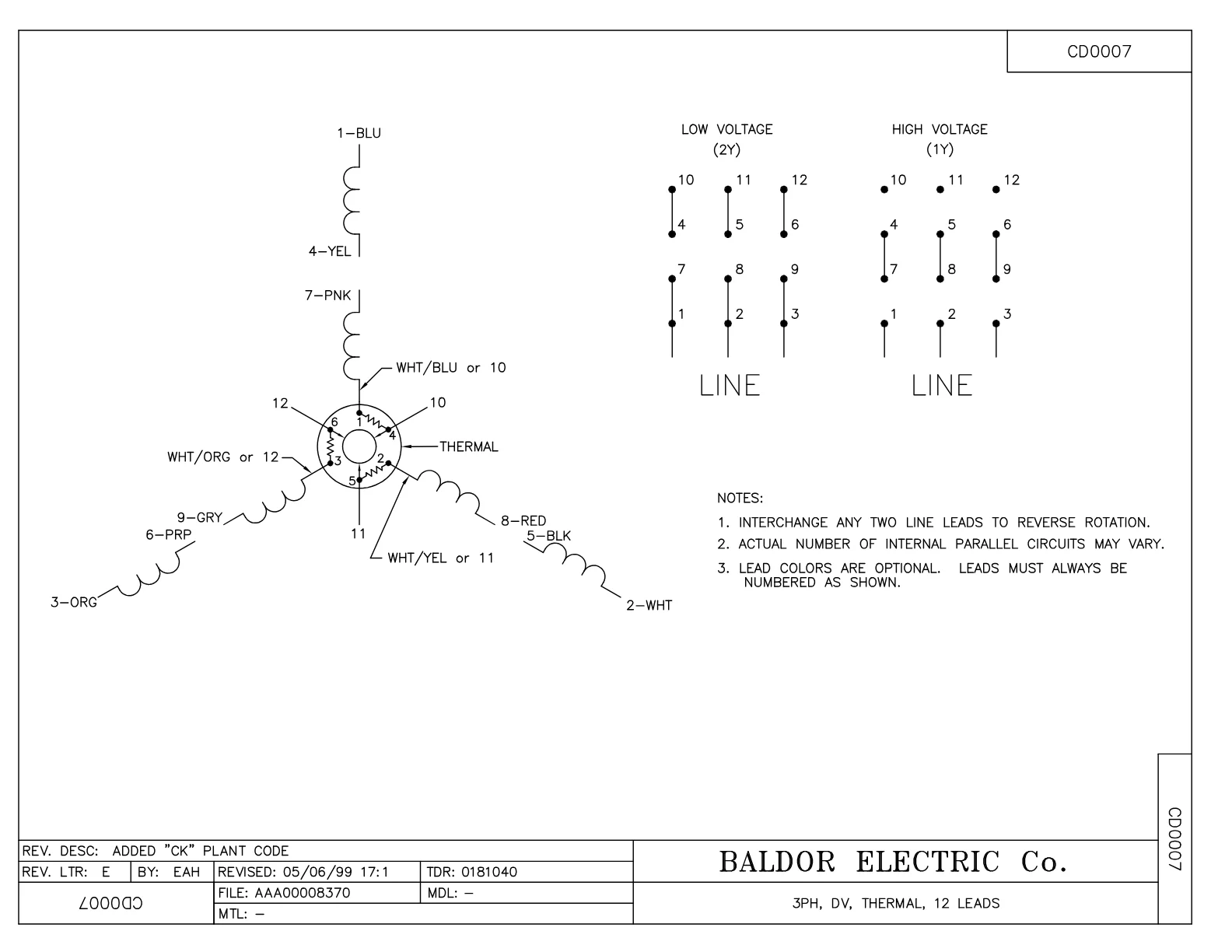

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·589 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM31116A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
