How can I get a price quote for Baldor EL11313A?

You can request a fast quote for Baldor EL11313A from Yılsa Engineering. Reference part number YLSU47EWB5W9JBJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EL11313A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EL11313A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EL11313A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EL11313A

EL11313A

BaldorMFR # EL11313ASKU # YLSU47EWB5W9JBJ

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EL11313A (EL11313A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EL11313A — price, stock availability and technical specifications.

Baldor EL11313A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage11.800 A @ 115.0 V · 5.900 A @ 230.0 V · 7.800 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 16 AWG

Motor type3532LC

Mounting arrangementF1

Number of poles2

Overall length12.63 IN

Power factor99

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3480 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568775523

Documents & CAD

For this product 2

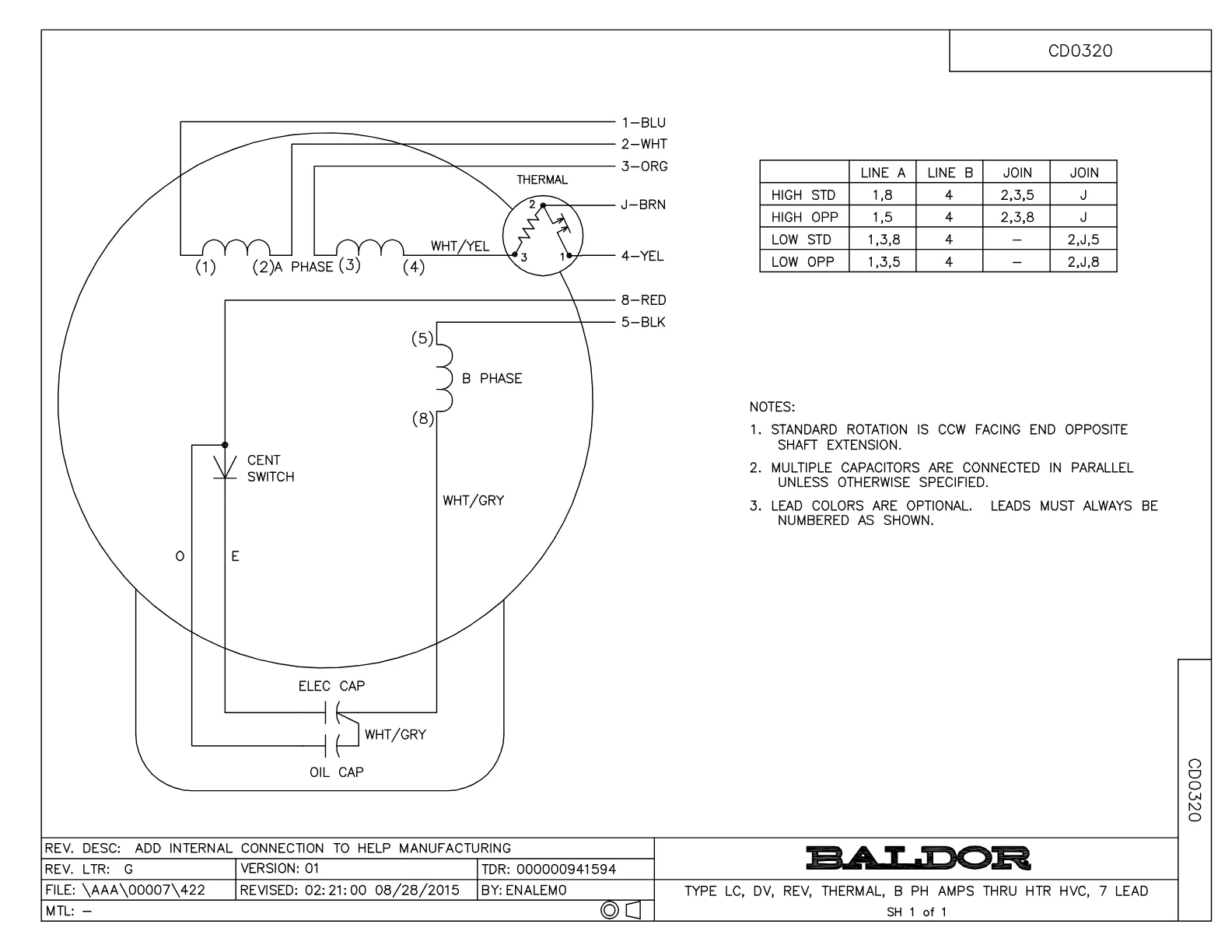

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·514 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EL11313A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
