Baldor ECR91258TR-4

ECR91258TR-4

BaldorMFR # ECR91258TR-4SKU # YLSCUKLW1NB68QY

EnclosureTEFC

Frame447T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECR91258TR-4 (ECR91258TR-4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECR91258TR-4 — price, stock availability and technical specifications.

Baldor ECR91258TR-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame447T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)900 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typeMobil SHC 220 (Athens Only)

Constant torque speed range30-60

Current at voltage171.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)171.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Maximum speed (rpm)3000 rpm

Motor lead quantity/wire size6 @ 2 AWG

Motor typeA44120M

Mounting arrangementF1

Number of poles8

Overall length48.24 IN

Power factor73

Product familyCrusher / Chipper

Pulley end bearing typeRoller

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)890 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568797570

Nameplate

Catalog numberECR91258TR-4

Specification numberP44G1826

Horsepower (HP)125

Current (A)171

Voltage (V)460

NEMA design letterA

Speed (rpm)890

Maximum speed (rpm)3000

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing dataNU222

Opposite drive end bearing data6318

Phase3

DutyCONT

Insulation classF

Frame size447T

Ingress protection (IP)55

TypeP

EnclosureTEFC

Code letter (locked rotor kVA)G

Power factor73

Efficiency at 3/4 load (%)94.2

NEMA nominal efficiency (%)94.1

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)30-60

Variable torque frequency range (Hz)6-60

Motor weight2380

Nameplate number000613007PV

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·775 KB·English

Performance CurvePerformance CurvePDF·97 KB·English

Series documents 3· shared by this product series

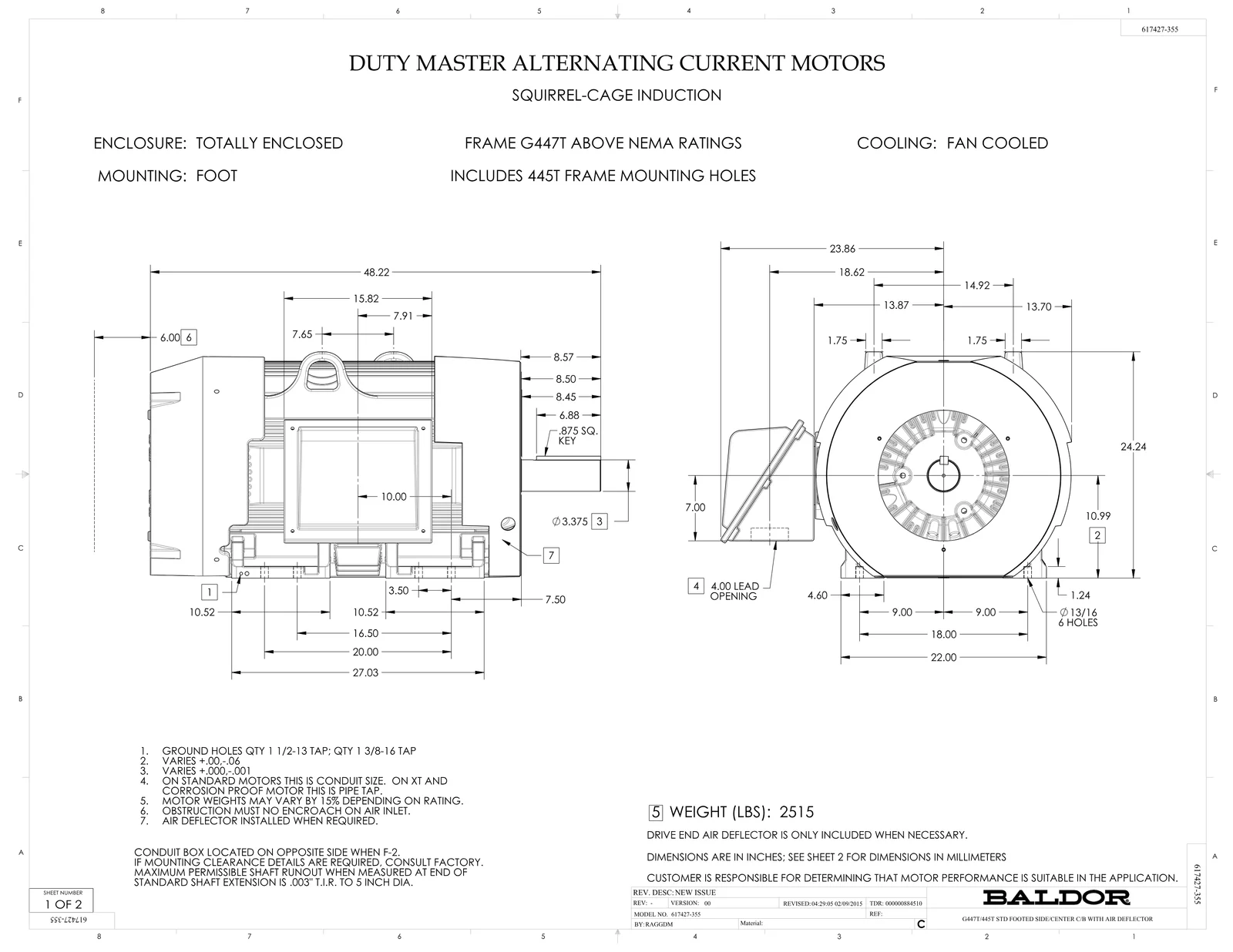

Dimension DrawingDimension SheetPDF·271 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor ECR91258TR-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
078557001E	FAN 440 078557001F	1 pcs	31 motors
418151014H	RETAIN RING	1 pcs	60 motors
