Baldor CJL3509A

CJL3509A

BaldorMFR # CJL3509ASKU # YLS1C6HRWZ6DM3E

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CJL3509A (CJL3509A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor CJL3509A — price, stock availability and technical specifications.

Baldor CJL3509A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.000 A @ 115.0 V · 5.800 A @ 208.0 V · 6.000 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load66.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3524L

Mounting arrangementF1

Number of poles2

Overall length13.72 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568749210

Nameplate

Catalog numberCJL3509A

Specification number35Z185-0498G1

Horsepower (HP)1

Voltage (V)115/230

Current (A)12/6

Speed (rpm)3450

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)66

Power factor81

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)2.46 Ω / 1.75 Ohms B Ph

Start configurationDOL

Breakdown torque4.1 lb-ft

Pull-up torque3.1 lb-ft

Locked-rotor torque5 lb-ft

Starting current (A)38.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	29	50	64	75	81	84	86	84
Efficiency %	0	49	65	67	69	68	67.5	68
Speed rpm	3587	3570	3550	3530	3505	3472	3445	3472
Line amps A	2.95	3.2	3.7	4.5	5.5	6.75	7.7	6.75
Power W	197	388	582	842	1082	1360	1631	1360
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25	1.88

Documents & CAD

For this product 3

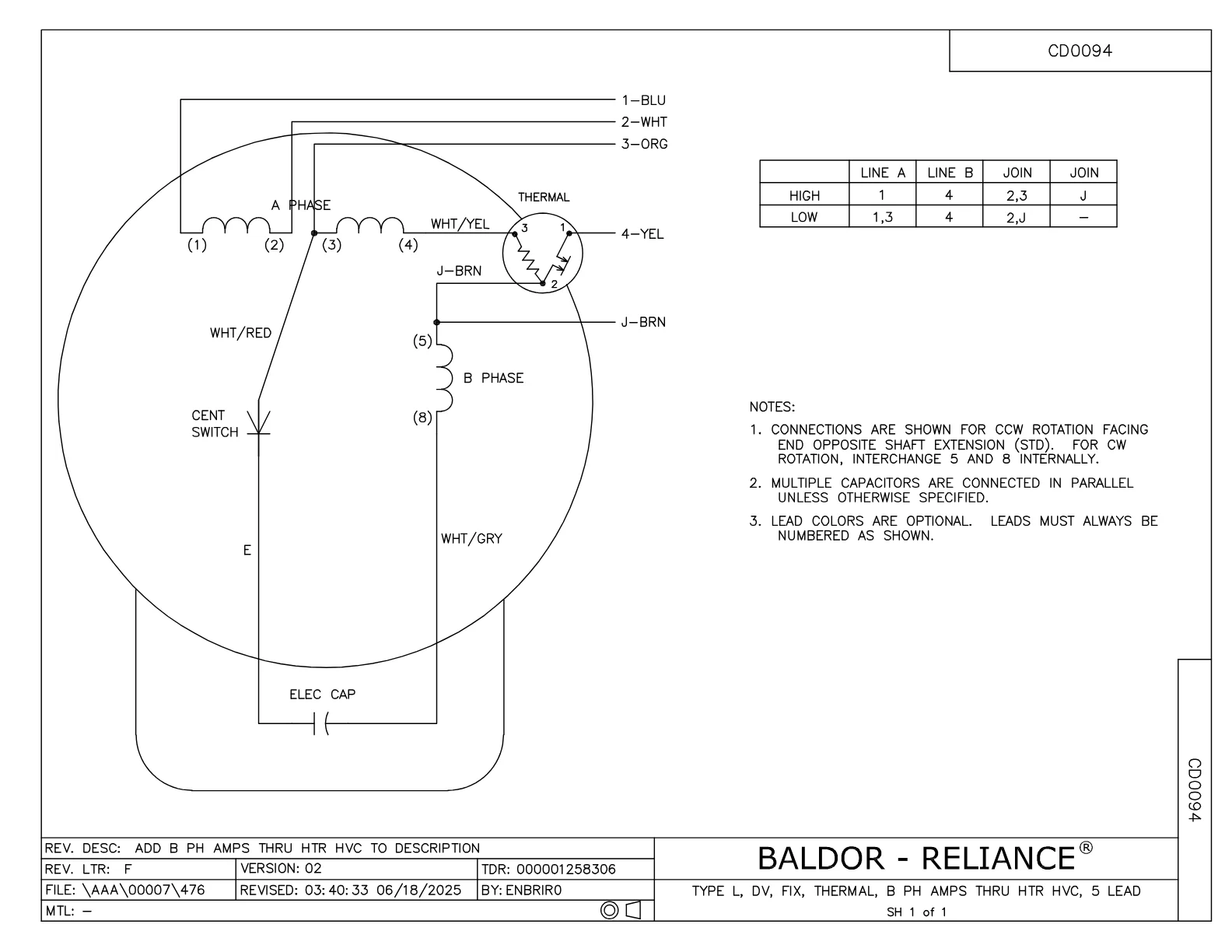

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·597 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·112 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CJL3509A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
