How can I get a price quote for Baldor 68884829?

You can request a fast quote for Baldor 68884829 from Yılsa Engineering. Reference part number YLSXJ0ATB0HRUCX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 68884829 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 68884829 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 68884829?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

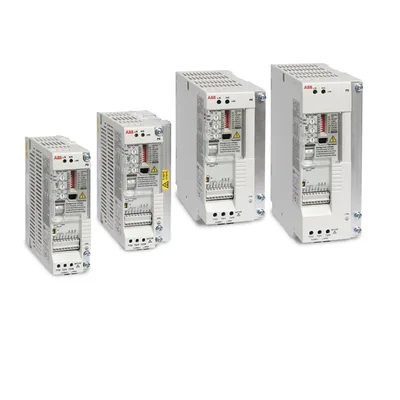

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 68884829

Baldor (ABB) 68884829 ACS55-01N-01A4-2 is an AC variable frequency drive with frame A and IP20, UL Type Open enclosure.

BaldorMFR # 68884829SKU # YLSXJ0ATB0HRUCXDiscontinued

EnclosureIP20, UL TYPE OPEN

FrameA

Input phase3

Mounting method1 PHASE

Normal duty continuous current (A)1.40 a

Normal duty power0.25 HP

Have questions?Chat on WhatsApp

About This Product

Baldor (ABB) 68884829 ACS55-01N-01A4-2 is an AC variable frequency drive with frame A and IP20, UL Type Open enclosure.

Baldor 68884829

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureIP20, UL TYPE OPEN

FrameA

Input phase3

Mounting method1 PHASE

Normal duty continuous current (A)1.40 a

Normal duty power0.25 HP

Output phase3

Product seriesACS55 DRIVE

Rated input voltage (V)240.00 V

Base type codeACS55-01N-01A4-2

Input current, constant torque (A)4.40 a

Maximum input frequency (Hz)63 Hz

Minimum input frequency (Hz)48 Hz

Maximum input voltage (V)240.00 V

Minimum input voltage (V)208.00 V

Maximum output frequency (Hz)250 Hz

Rated output voltage max. (V)240.00 V

Documents & CAD

For this product 1

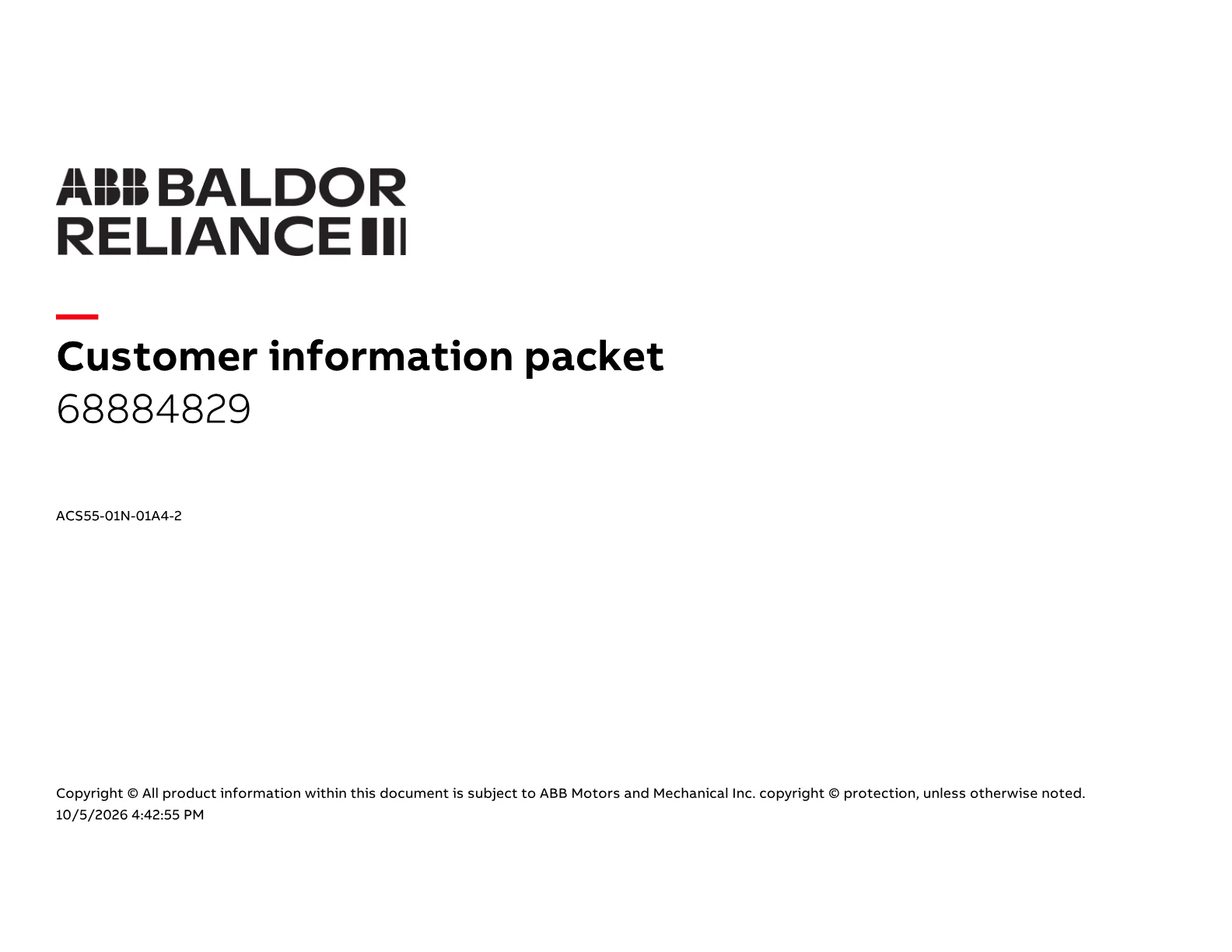

DatasheetDatasheetPDF·113 KB·English

Accessories 3

Genuine accessories that can be used with the Baldor 68884829 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
