How can I get a price quote for Baldor 68582105?

You can request a fast quote for Baldor 68582105 from Yılsa Engineering. Reference part number YLSANSOWUXO3R0Y. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 68582105 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 68582105 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 68582105?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 68582105

ABB 68582105 ACS150-03U-03A3-4 is an AC variable frequency drive with frame R1 and IP20 / UL Type Open enclosure.

BaldorMFR # 68582105SKU # YLSANSOWUXO3R0Y

EnclosureIP20, UL TYPE OPEN

FrameR1

Input phase3

Mounting method3 PHASE

Normal duty continuous current (A)3.30 a

Normal duty power1.50 HP

Have questions?Chat on WhatsApp

About This Product

ABB 68582105 ACS150-03U-03A3-4 is an AC variable frequency drive with frame R1 and IP20 / UL Type Open enclosure.

Baldor 68582105

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureIP20, UL TYPE OPEN

FrameR1

Input phase3

Mounting method3 PHASE

Normal duty continuous current (A)3.30 a

Normal duty power1.50 HP

Output phase3

Product seriesACS150 DRIVE

Rated input voltage (V)480.00 V

Base type codeACS150-03U-03A3-4

Input current, constant torque (A)5.00 a

Maximum input frequency (Hz)63 Hz

Minimum input frequency (Hz)48 Hz

Maximum input voltage (V)480.00 V

Minimum input voltage (V)380.00 V

Maximum output frequency (Hz)500 Hz

Rated output voltage max. (V)480.00 V

UPC781568744246

Documents & CAD

For this product 1

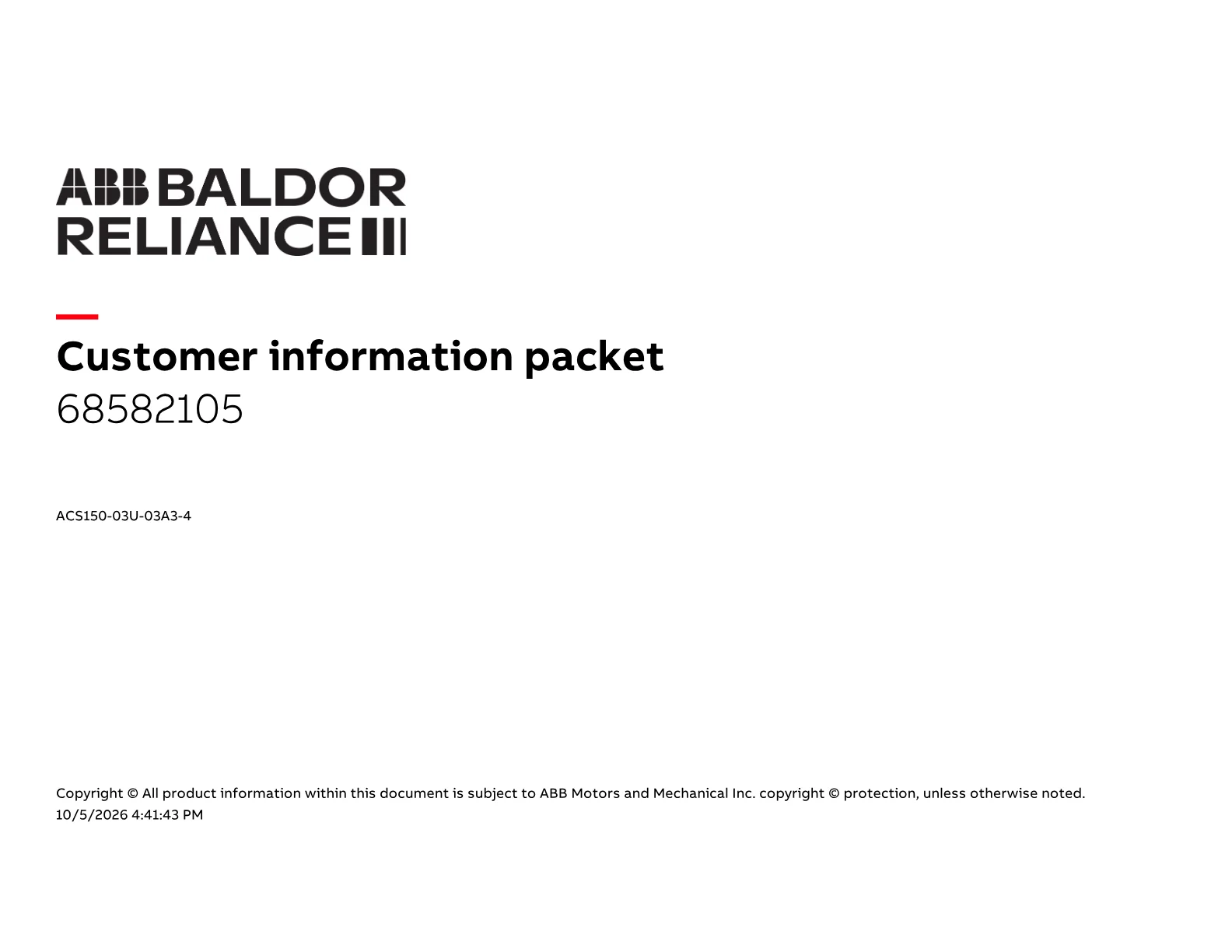

DatasheetDatasheetPDF·352 KB·English

Accessories 7

Genuine accessories that can be used with the Baldor 68582105 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
68566380	FLASHDROP MFDT-01	87 motors
68566398	MUL1-R1 R1 UL TYPE 1 OPTI	51 motors
3AUA0000064050	P14494-CR-02	12 motors
3AUA0000064064	P14494-CR-14	7 motors
3AUA0000015096	P14494-13	5 motors
3AUA0000064059	P14494-CR-09	7 motors
3AUA0000064070	P14494-CR-20	3 motors
