How can I get a price quote for Baldor 3AUA0000134270?

You can request a fast quote for Baldor 3AUA0000134270 from Yılsa Engineering. Reference part number YLSWUEJRNRJSLCZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 3AUA0000134270 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 3AUA0000134270 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 3AUA0000134270?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 3AUA0000134270

Baldor (ABB) 3AUA0000134270 ACB530-U1-072A-4+B055 is an AC variable frequency and servo drive with R4 frame and IP54, UL Type 12 enclosure.

BaldorMFR # 3AUA0000134270SKU # YLSWUEJRNRJSLCZ

EnclosureIP54, UL TYPE 12

FrameR4

Input phase3

Mounting methodWALL MOUNTED

Normal duty continuous current (A)72.00 a

Normal duty power50.00 HP

Have questions?Chat on WhatsApp

About This Product

Baldor (ABB) 3AUA0000134270 ACB530-U1-072A-4+B055 is an AC variable frequency and servo drive with R4 frame and IP54, UL Type 12 enclosure.

Baldor 3AUA0000134270

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureIP54, UL TYPE 12

FrameR4

Input phase3

Mounting methodWALL MOUNTED

Normal duty continuous current (A)72.00 a

Normal duty power50.00 HP

Output phase3

Product seriesBALDOR 530

Rated input voltage (V)480.00 V

Base type codeACB530-U1-072A-4+B055

Heavy duty continuous current (A)59.00 a

Heavy duty power40.00 HP

Input current, constant torque (A)72.00 a

Maximum input frequency (Hz)63 Hz

Minimum input frequency (Hz)48 Hz

Maximum input voltage (V)480.00 V

Minimum input voltage (V)380.00 V

Maximum output frequency (Hz)500 Hz

Rated output voltage max. (V)480.00 V

UPC6438177309086

Documents & CAD

For this product 1

DatasheetDatasheetPDF·505 KB·English

Series documents 1· shared by this product series

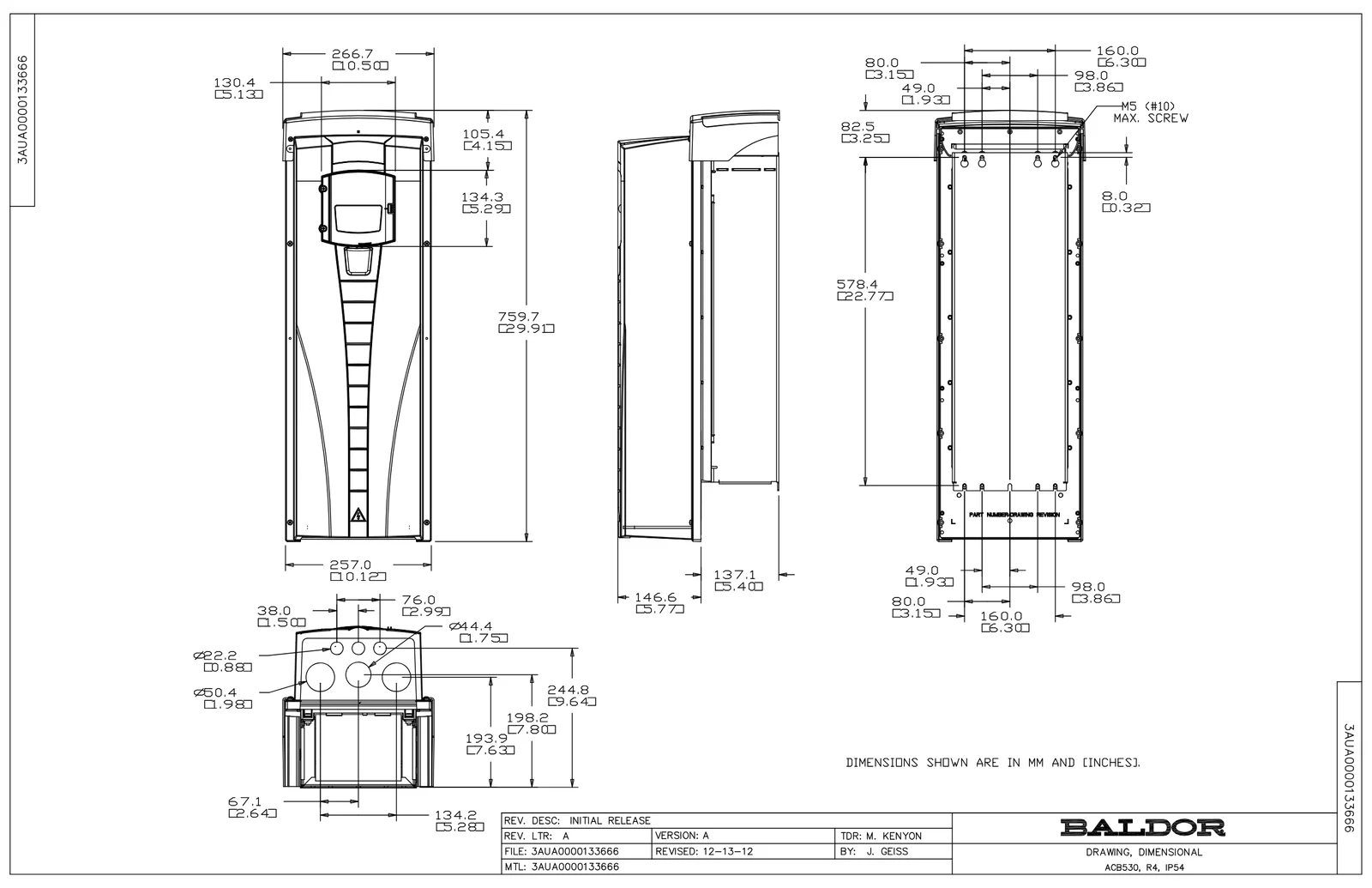

Dimension DrawingDimension SheetPDF·77 KB·English

Accessories 12

Genuine accessories that can be used with the Baldor 3AUA0000134270 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3AUA0000003489	OHDI-01 KIT 115/230V DIGITAL INPUT	122 motors
3AUA0000013086	OPMP-01 KIT PANEL MOUNTING PLATFORM	172 motors
3AUA0000002388	OCAT-01 CABLE,ETHERNET,CAT5	192 motors
68294673	ACS/H-CP-EXT PANEL KIT	172 motors
68829593	ACS/H-CP-EXT-IP66 PANEL KIT	172 motors
64606891	RDNA-01 DEVICENET OPTION/SP KIT	122 motors
64606859	RPBA-01 PROFIBUS-DP ADAPTER-KIT	122 motors
64751727	RETA-01 ETHERNET ADAPTOR MODULE KIT	122 motors
64751701	BAC, RCNA-01 Option	122 motors
3AUA0000045102	RECA-01 ETHERCAT MODULE KIT	122 motors
3AUA0000006791	FMK-A-R4 FLANGE MNT KIT, IP21, R4	25 motors
3AUA0000131700	ACB-CP-BA CONTROL PANEL	121 motors
