Baldor 248464

Baldor SCXT815A (248464) is a conventional helical shaft-mount screw conveyor speed reducer.

BaldorMFR # 248464SKU # YLSQDCG2IVGO37ODiscontinued

UPC782475098507

Have questions?Chat on WhatsApp

About This Product

Baldor SCXT815A (248464) is a conventional helical shaft-mount screw conveyor speed reducer.

Baldor 248464

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

UPC782475098507

Documents & CAD

For this product 1

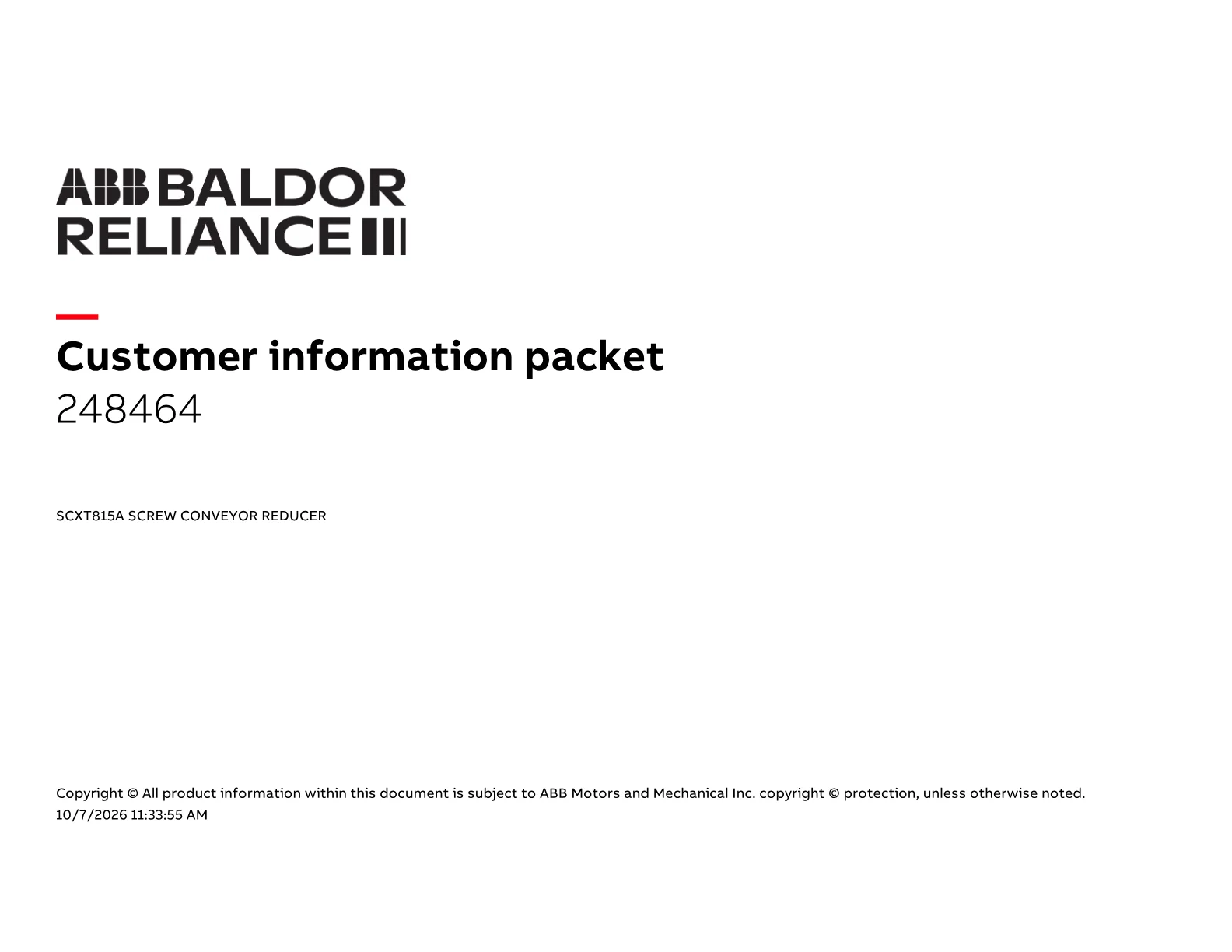

DatasheetDatasheetPDF·114 KB·English

Spare Parts 28

The genuine spare parts used for servicing and repairing the Baldor 248464 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
248213	TDT815 T-A RED 1ST RED GEAR	1 pcs	5 motors
248370IA	TXT-TDT-TD815A REDR INPUT PINION ASSY	1 pcs	5 motors
032018056FR	3/4-10NC X 7 HHCS CLEAR ZP GR5 411500	2 pcs	10 motors
248111	TXT8 .002 SHIM (USE PACK 391182)	15 pcs	10 motors
430035	3/4 SOC HD PI PLG COATED	3 pcs	23 motors
248002	TDT8 T-A RED CSHAFT PINION	1 pcs	10 motors
248211	TD-TDT-TXT8, 9, 10 INPUT SEAL	1 pcs	10 motors
248217	TD8-TD9 LARGE GEAR KEY	2 pcs	10 motors
248220	TD8 THRU TD1125 B STOP CVR GSKT	1 pcs	10 motors
248223	TDT8 T-A RED LH CSHAFT COVER	1 pcs	10 motors
248332	TXT-TDT8 REDR ST BORE OUTPUT HUB	1 pcs	6 motors
258021	#18 OUTPUT OIL SEAL CARRIER LH	1 pcs	10 motors
258023	#18 INPUT SHAFT OIL SEAL CARRIER	1 pcs	10 motors
304624	1/2 X 3/4 DOWELL PIN	2 pcs	72 motors
402057	BEARING CONE	1 pcs	10 motors
402147	BEARING CONE	2 pcs	10 motors
402148	BEARING CONE	1 pcs	10 motors
403072	BEARING CUP	2 pcs	11 motors
403105	BEARING CUP	2 pcs	10 motors
403106	BEARING CUP	1 pcs	28 motors
403143	BEARING CUP	1 pcs	10 motors
033102020AM	3/4-10 HEX NUT CLEAR ZINC GR2 (407095)	11 pcs	23 motors
034017014AF	3/8" MED LOCK WASHER CLEAR ZINC 419011	24 pcs	77 motors
034017020AF	3/4" MED LKWR ZP (419136) 034017020AB	11 pcs	23 motors
430064	3/4 NPT SQ HD MAGNETIC PLUG	1 pcs	24 motors
430079	3/4 MALE PTX1/2 M911 HEX BUSH	1 pcs	23 motors
904287	TXT/TA2 AIR VENT 1/2-14 NPT	1 pcs	71 motors
907286	TA7315 HNBR OUTPUT SEAL	2 pcs	10 motors
