How can I get a price quote for Baldor 245563?

You can request a fast quote for Baldor 245563 from Yılsa Engineering. Reference part number YLSZRAOHR78GQT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 245563 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 245563 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 245563?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 245563

Baldor (ABB) 245563 TXT515CS, CSV is a straight-bore conventional helical shaft-mount speed reducer.

BaldorMFR # 245563SKU # YLSZRAOHR78GQTDiscontinued

UPC782475672110

Have questions?Chat on WhatsApp

About This Product

Baldor (ABB) 245563 TXT515CS, CSV is a straight-bore conventional helical shaft-mount speed reducer.

Baldor 245563

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

UPC782475672110

Documents & CAD

For this product 1

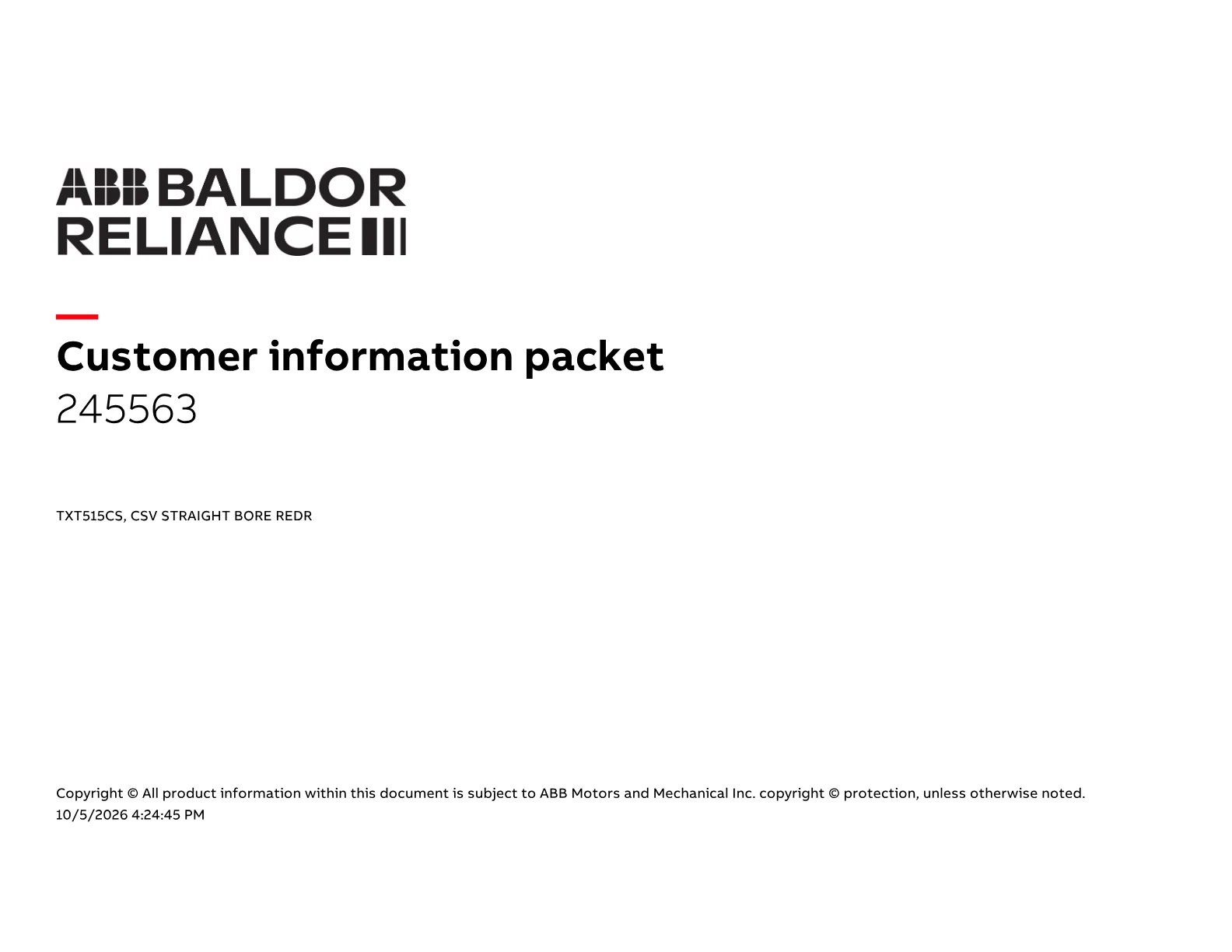

DatasheetDatasheetPDF·113 KB·English

Spare Parts 21

The genuine spare parts used for servicing and repairing the Baldor 245563 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
245613	BAGGED PARTS TXT5	1 pcs	14 motors
245139	ORDER 389719) TXT5B OUTPUT SHIM	15 pcs	28 motors
430033	1/2 SOC HD PIPE PLUG DRSEAL	6 pcs	55 motors
245220	TD5 BKSTOP COVER GASKET	1 pcs	28 motors
245592	TXT-SCXT-HXT5B OUT SEAL CAR LH	1 pcs	25 motors
245597KIT	TXT5C INP SEAL CAR	2 pcs	17 motors
245598	TXT5B STR BORE COLLAR	2 pcs	8 motors
245600IA	TXT-SCXT515B INP SHAFT & PINION	1 pcs	6 motors
304624	1/2 X 3/4 DOWELL PIN	2 pcs	72 motors
334277	TIGEAR 2 SEAL & TXT5A-C,TXT405A I/P SEAL	1 pcs	28 motors
400154	1/2-13X1 SOC SET SCR CP	4 pcs	16 motors
403016	BEARING CUP 42584	2 pcs	28 motors
403027	BEARING CUP	2 pcs	58 motors
403073	BEARING CUP	1 pcs	28 motors
403104	BEARING CUP	1 pcs	28 motors
032018044DR	1/2-13NC X 5 1/2 HHCS ZP GR5 411466	3 pcs	54 motors
034017014AF	3/8" MED LOCK WASHER CLEAR ZINC 419011	15 pcs	77 motors
034017016AF	1/2" MED LOCK WASHER CLEAR ZINC 419013	8 pcs	72 motors
430062	1/2 NPT SQ HD MAGNETIC PLUG	1 pcs	54 motors
904286	TA4207 HNBR OUTPUT SEAL	2 pcs	28 motors
904287	TXT/TA2 AIR VENT 1/2-14 NPT	1 pcs	71 motors
