ABB 7TAG009590R0016

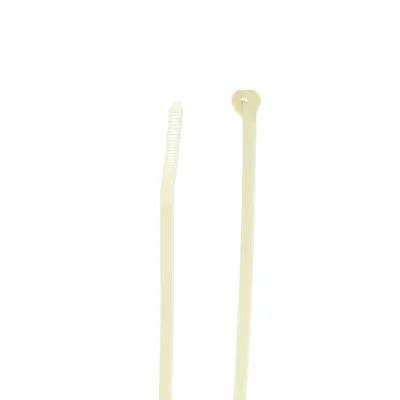

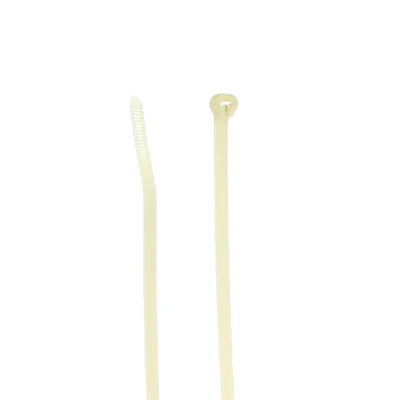

Extra High Temperature Cable Tie, Olive Polyamide (nylon 4.6) for Temperatures up to 150 Degrees Celsius (302 F) for High Temperature Environments, Length of 360mm (14.2 Inches), Width of 4.7mm (0.19 Inch), Thickness of 1.3mm (0.05 Inch), Tensile Strength Rating of 222 Newtons (50 Pounds)

ABBMFR # 7TAG009590R0016SKU # YLSS37GUOSTWREU

Extended Product TypeTYHT28M

Flammability According to UL94V-2

Bundle Diameter0.187 to 4 in, 4.75 to 102 mm

ColorOlive

Lock TypeStainless Steel Barb

MaterialNylon/Polyamide 4.6

Share

Have questions?Chat on WhatsApp

About This Product

Extra High Temperature Cable Tie, Olive Polyamide (nylon 4.6) for Temperatures up to 150 Degrees Celsius (302 F) for High Temperature Environments, Length of 360mm (14.2 Inches), Width of 4.7mm (0.19 Inch), Thickness of 1.3mm (0.05 Inch), Tensile Strength Rating of 222 Newtons (50 Pounds)

ABB 7TAG009590R0016

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeTYHT28M

Flammability According to UL94V-2

Bundle Diameter0.187 to 4 in, 4.75 to 102 mm

ColorOlive

Lock TypeStainless Steel Barb

MaterialNylon/Polyamide 4.6

Product TypeExtra High Temperature

Special FunctionsLow profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

StandardsUL E49405

Tensile Strength50 lb, 222 N

Thickness0.05 in, 1.3 mm
