How can I get a price quote for ABB 2TAZ352001R2043?

You can request a fast quote for ABB 2TAZ352001R2043 from Yılsa Engineering. Reference part number YLSFCVMMWRIBCI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2TAZ352001R2043 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2TAZ352001R2043 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2TAZ352001R2043?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

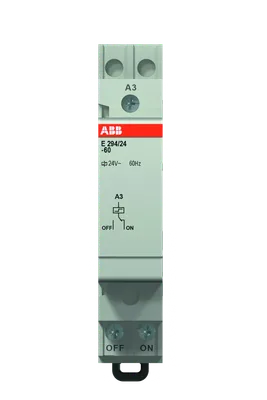

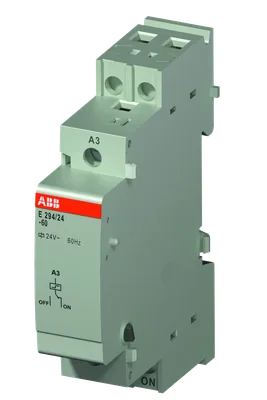

ABB 2TAZ352001R2043

Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

ABBMFR # 2TAZ352001R2043SKU # YLSFCVMMWRIBCI

Extended Product TypeE294/24-60

FunctionMechanical for centralized control

Rated Control Circuit Voltage (Uc)24 V AC

Tightening Torque1.2 - 1.5 N·m

Rated Voltage (Ur)250 V AC

Rated Control Supply Voltage (Us)250 V AC
