How can I get a price quote for ABB 2TAZ312000R2053?

You can request a fast quote for ABB 2TAZ312000R2053 from Yılsa Engineering. Reference part number YLSFMOHWUDSGPXW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2TAZ312000R2053 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2TAZ312000R2053 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2TAZ312000R2053?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

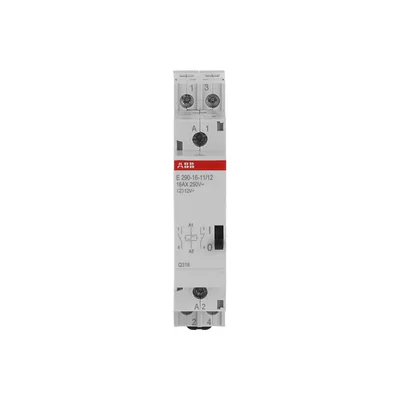

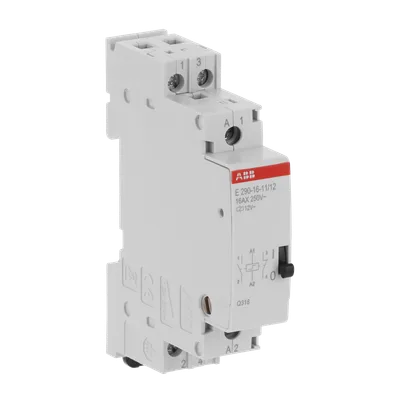

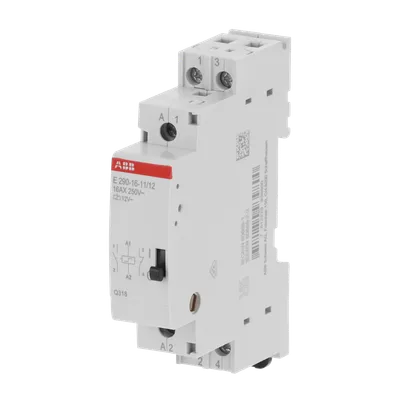

ABB 2TAZ312000R2053

Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

ABBMFR # 2TAZ312000R2053SKU # YLSFMOHWUDSGPXW

Extended Product TypeE290-16-11/12

FunctionMechanical latching relay

Rated Control Circuit Voltage (Uc)12 V AC

Number of Main Contacts NC1

Number of Main Contacts NO1

Sound dB (A)(@distance 1 m) 60 dB

Have questions?Chat on WhatsApp

About This Product

ABB 2TAZ312000R2053

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE290-16-11/12

FunctionMechanical latching relay

Rated Control Circuit Voltage (Uc)12 V AC

Number of Main Contacts NC1

Number of Main Contacts NO1

Sound dB (A)(@distance 1 m) 60 dB

Tightening Torque1.2 - 1.5 N·m

Response Time<3 ms

Impulse DurationMinimum 50 ms

Coil ConsumptionControl Voltage V AC 12 V AC, Average Pull-in Value 50 Hz 1.263 A

Connecting CapacitySolid 1 x 1 ... 10 mm², Flexible 2 x 2.5 mm², Flexible with Cable End 1 x 0.75 ... 6 mm², Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Supply Voltage10.8 ... 13.2 V AC

Rated Insulation Voltage (Ui)12 V AC

Rated Control Supply Voltage (Us)250 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Current Rating, Main Switch16 A

Maximum Switching Currentcos phi = 0.6 16 A

Frequency (f)Control Voltage 1 50 Hz

Rated Frequency (f)50 Hz

Power LossTotal 0.5 W

Number of Contacts NC1

Number of Contacts NO1

RAL NumberRAL 7035 - Light Grey

ColorGrey

Ambient Air TemperatureOperation -25...+55 °C, Storage -40...+70 °C

Climate Class Reference StandardIEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens, IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen., IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens

Width in Number of Modular Spacings1

Built-In Depth (t2)68 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 60669-1, IEC/EN 60669-2-2
