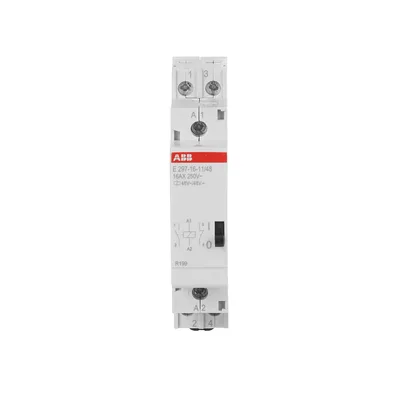

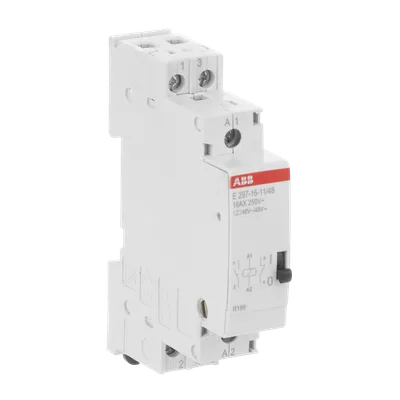

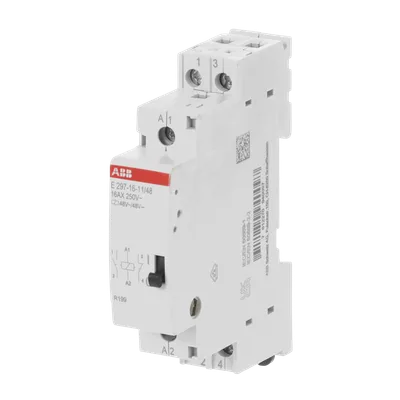

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2TAZ311000R2033

Installation relays are electromagnetically operated miniature contactors in the standard DIN width of 18 mm. A reliable control system can be designed using these ABB Installation relays E297. They are used mainly in industrial plants but also in commercial and public buildings. As a rule, installation relays operated by means of a control switch (maintained contact) are installed where it is necessary to operate lighting, an air-conditioning system, a fan or suchlike. Installation relays are also referred to as monostable switching relays or 2-pole miniature contactors. The term "monostable" means that an on command has to be sent to the coil by means of a control switch (maintained operation) in order to excite the magnetic coil. The coil armature attracts and closes or opens the main contacts. The device remains in the on position for as long as the control voltage is applied to the coil. If the voltage flow to the coil is interrupted, the installation relay always returns to the neutral position (off position). Installation relays and the accessories are available in different versions in order to easily satisfy the various market requirements. Their optimal switching capacity also makes them suitable for use in industrial environments and in situations where it is necessary to ensure control over more powerful consumers (such as e.g. multiple lighting ystems). Using an optimized coil (low power loss = lower operating temperature) ensures a clean and safe operation in the electrical distribution board.

ABBMFR # 2TAZ311000R2033SKU # YLSSQNO8HXOA3

Extended Product TypeE297-16-11/48

FunctionMonostable installation relay

Rated Control Circuit Voltage (Uc)48 V AC, 48 V DC

Number of Main Contacts NC1

Number of Main Contacts NO1

Sound dB (A)(@distance 1 m) 60 dB

Have questions?Chat on WhatsApp

About This Product

ABB 2TAZ311000R2033

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE297-16-11/48

FunctionMonostable installation relay

Rated Control Circuit Voltage (Uc)48 V AC, 48 V DC

Number of Main Contacts NC1

Number of Main Contacts NO1

Sound dB (A)(@distance 1 m) 60 dB

Tightening Torque1.2 - 1.5 N·m

Response Time<3 ms

Coil ConsumptionControl Voltage V AC 48 V AC, Average Pull-in Value 50 Hz 2.10 A, Average Holding Value 50 Hz 1.416 W, Average Holding Value 50 Hz 0.033 A, Control Voltage V AC 48 V DC, Average Pull-in Value DC 2.10 A, Average Holding Value DC 1.416 W, Average Holding Value DC 0.033 A

Connecting CapacitySolid 1 x 1 ... 10 mm², Flexible 2 x 2.5 mm², Flexible with Cable End 1 x 0.75 ... 6 mm², Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Rated Voltage (Ur)250 V AC

Rated Operational Voltage250 V AC

Supply Voltage43.2 ... 52.8 V AC

Rated Insulation Voltage (Ui)48 V AC/DC

Rated Control Supply Voltage (Us)48 V AC, 48 V DC

Rated Impulse Withstand Voltage (Uimp)4 kV

Rated Current (In)16 A

Rated Frequency (f)50 .. 60 Hz

Maximum Lamp Load3000 W, Flourescent, Uncorrected Power Factor (cos. 0.5) 1800 W, Flourescent, Corrected Power Factor (cos. 0.9): Serial 3000 W, Flourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 W, Flourescent, Corrected Power Factor (cos. 0.9): Single 1800 W, Flourescent, Corrected Power Factor (cos. 0.9): Double 2500 W

Power LossTotal 0.5 W

Number of Contacts NC1

Number of Contacts NO1

RAL NumberRAL 7035 - Light Grey

ColorGrey

Ambient Air TemperatureOperation -25...+55 °C, Storage -40...+70 °C

Width in Number of Modular Spacings1

Built-In Depth (t2)62 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsEN 60669-1, EN 60669-2-2
