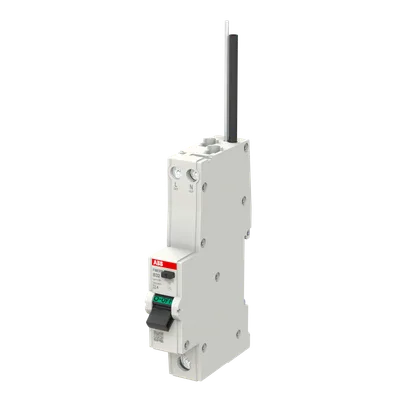

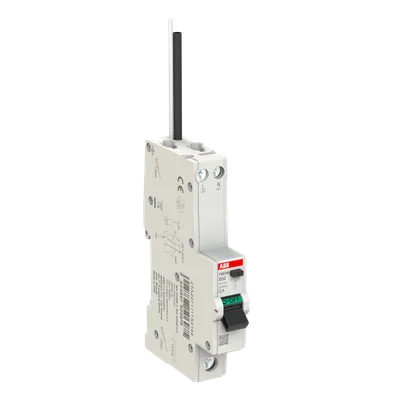

ABB 2TAZ271114R4325
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
Extended Product TypeFMERM B32/A300 N black
Suitable for IsolationYes
Dielectric Test Voltage2.5 kV
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
About This Product
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
ABB 2TAZ271114R4325
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeFMERM B32/A300 N black
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 56.72 %, Recycled Paper - 0 %, Recycled Cardboard - 37.77 %, Recycled Paper - 0 %, Chemically Recycled Polymer - 3.71 %
Suitable for IsolationYes
Dielectric Test Voltage2.5 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance20000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Position of Neutral TerminalsRight
Tightening TorqueBottom 2 N·m, Top 1.2 N·m
Actuator TypeToggle - Insulation group IIIa
Screw Terminal TypeCage Terminal
Recommended Screw DriverPozidriv 2
Accessories AvailableNo
Connecting CapacityConductor (Top) 10 flexible mm², Conductor (Top) 16 rigid mm², Conductor (Bottom) 16 flexible mm², Conductor (Bottom) 25 rigid mm²
Wire Stripping LengthInput Circuit 13 mm, Output Circuit 13 mm
Terminal TypeScrew Terminals
Rated Operational Voltage230 ... 240 V AC
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)32 A
Rated Short-Circuit Capacity10 kA
Rated Frequency (f)50 / 60 Hz
Power LossTotal 4.06 W
Overvoltage CategoryIII
Ambient Air TemperatureStorage -25…70 °C, Operation -25…55 °C
Degree of ProtectionHousing IP40, Terminals IP20
Pollution Degree2
Width in Number of Modular Spacings1
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
Mounting PositionVertical/Horizontal
StandardsIEC 61009-1, IEC 61009-2-2
