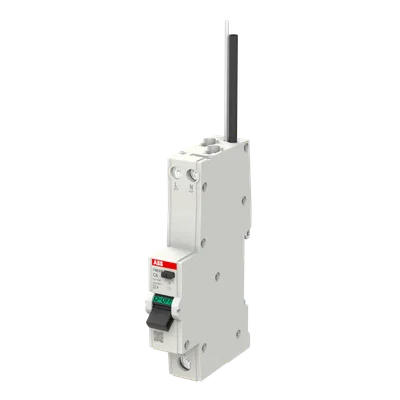

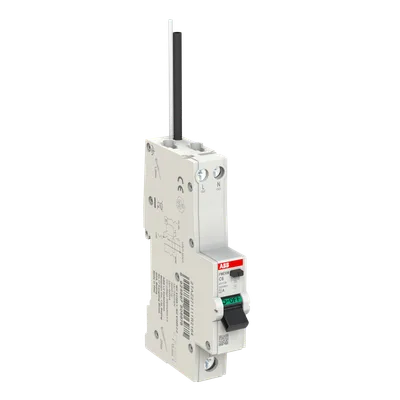

ABB 2TAZ271114R4064

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2TAZ271114R4064

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

ABBMFR # 2TAZ271114R4064SKU # YLSSZUXXJISRDOO

Extended Product TypeFMERM C6/A300 N black

Suitable for IsolationYes

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Share

Have questions?Chat on WhatsApp

About This Product

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

ABB 2TAZ271114R4064

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeFMERM C6/A300 N black

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 56.72 %, Recycled Paper - 0 %, Recycled Cardboard - 37.77 %, Recycled Paper - 0 %, Chemically Recycled Polymer - 3.71 %

Suitable for IsolationYes

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance20000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Position of Neutral TerminalsRight

Tightening TorqueBottom 2 N·m, Top 1.2 N·m

Actuator TypeToggle - Insulation group IIIa

Screw Terminal TypeCage Terminal

Recommended Screw DriverPozidriv 2

Accessories AvailableNo

Connecting CapacityConductor (Top) 10 flexible mm², Conductor (Top) 16 rigid mm², Conductor (Bottom) 16 flexible mm², Conductor (Bottom) 25 rigid mm²

Wire Stripping LengthInput Circuit 13 mm, Output Circuit 13 mm

Terminal TypeScrew Terminals

Rated Operational Voltage230 ... 240 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 / 60 Hz

Power LossTotal 1.4 W

Overvoltage CategoryIII

Ambient Air TemperatureStorage -25…70 °C, Operation -25…55 °C

Degree of ProtectionHousing IP40, Terminals IP20

Pollution Degree2

Width in Number of Modular Spacings1

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionVertical/Horizontal

StandardsIEC 61009-1, IEC 61009-2-2

Documents & CAD

Documents 6

CertificatePEP report FMER seriesPDF·746 KB·English

CertificateCE Declaration FMERPDF·84 KB·English

Instruction ManualEoL FMER and FMER M InstructionsPDF·435 KB·English

Instruction ManualInstruction manual FMER seriesPDF·797 KB·English

Wiring DiagramWiring diagram FMER seriesPDF·14 KB·English

Technical Drawing2D Drawing FMER seriesPDF·35 KB·English

CAD Files 1

3D Model

STEP.stp · 7.8 MB
