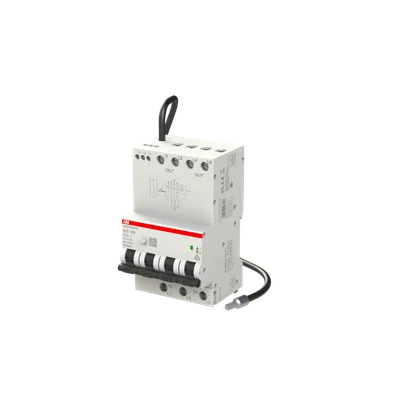

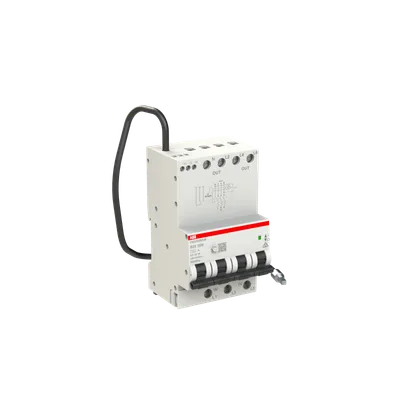

DSE203NS M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The neutral is switched.

ABBMFR # 2TAZ262414R3254SKU # YLSS54RYSHMPAI

Extended Product TypeDSE203NS M B25 A100

Type of Residual CurrentType A

Test Voltage (Ut)204 … 457 V

Dielectric Test Voltage2 kV

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Share

Have questions?Chat on WhatsApp

About This Product

DSE203NS M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The neutral is switched.

ABB 2TAZ262414R3254

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSE203NS M B25 A100

Sustainable Material Content in Packaging (wt. %)Recycled Paper - 47.5 %, Recycled Paper - 3.4 %, Recycled Paper - 0.9 %, Recycled Cardboard - 44.8 %, Recycled Paper - 3.4 %

Improved Energy Efficiency for CustomersProcess Efficiency - Product improves/optimizes process, Process Efficiency - Product contribute to making customer’s operations more resilient and reliable

Type of Residual CurrentType A

Test Voltage (Ut)204 … 457 V

Dielectric Test Voltage2 kV

Rated Residual Breaking Capacity (IΔm)6 kA

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P+N

Number of Modular Spacings per DIN Rail4

Position of Neutral TerminalsLeft

Tightening Torque2.5 N·m

Actuator TypeToggle - Insulation group II

Housing TypeInsulation group I

Screw Terminal TypeCage Terminal

Accessories AvailableNo

Connecting CapacityBusbar 10 mm², Rigid 1 …25 mm², Flexible 1 …16 mm²

Wire Stripping LengthTop 11.5 mm, Bottom 15 mm

Terminal TypeScrew Terminals

Rated Operational Voltage400/415 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)25 A

Rated Residual Current100 mA

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 13.44 W

Overvoltage CategoryIII

Number of Modules4

Ambient Air TemperatureOperation -5 ... 55 °C, Storage -25 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Width in Number of Modular Spacings4

Built-In Depth (t2)71.6 mm

Mounting TypeDIN rail

Mounting PositionVertical/Horizontal

StandardsIEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

Documents & CAD

Documents 5

Technical Drawing2D_DSE203NS MPDF·49 KB·English

Instruction ManualInstruction DSE203 M, DSE203N M, DSE203NS MPDF·586 KB·English

CertificateDSE203, DSE203N and DSE203NS Product Environmental ProfilePDF·550 KB·English

Instruction ManualEnd of Life Instruction DSE203, DSE203N, DSE203NSPDF·462 KB·English

Wiring DiagramWiring diagram DSE203, DSE203N, DSE203NSPDF·388 KB·English
