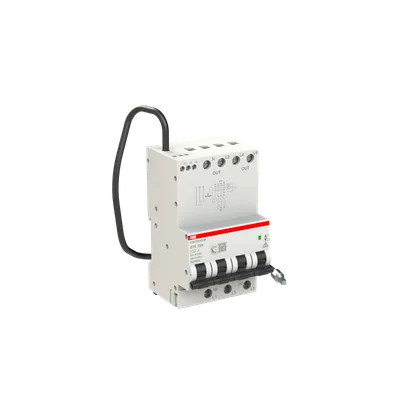

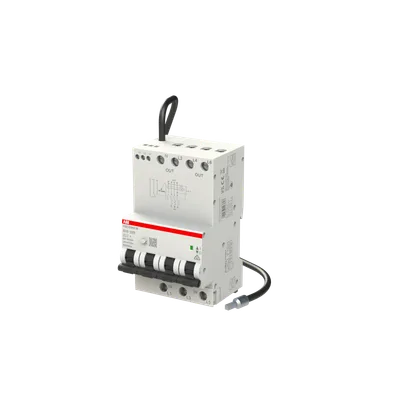

ABB 2TAZ262414R2164
DSE203NS M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The neutral is switched.
Extended Product TypeDSE203NS M B16 A30
Type of Residual CurrentType A
Test Voltage (Ut)204 … 457 V
Dielectric Test Voltage2 kV
Power Supply ConnectionBottom
Contact Position IndicationRed ON / Green OFF
About This Product
DSE203NS M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The neutral is switched.
ABB 2TAZ262414R2164
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDSE203NS M B16 A30
Sustainable Material Content in Packaging (wt. %)Recycled Paper - 47.5 %, Recycled Paper - 3.4 %, Recycled Paper - 0.9 %, Recycled Cardboard - 44.8 %, Recycled Paper - 3.4 %
Improved Energy Efficiency for CustomersProcess Efficiency - Product improves/optimizes process, Process Efficiency - Product contribute to making customer’s operations more resilient and reliable
Type of Residual CurrentType A
Test Voltage (Ut)204 … 457 V
Dielectric Test Voltage2 kV
Rated Residual Breaking Capacity (IΔm)6 kA
Power Supply ConnectionBottom
Contact Position IndicationRed ON / Green OFF
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles3
Number of Poles3P+N
Number of Modular Spacings per DIN Rail4
Position of Neutral TerminalsLeft
Tightening Torque2.5 N·m
Actuator TypeToggle - Insulation group II
Housing TypeInsulation group I
Screw Terminal TypeCage Terminal
Accessories AvailableNo
Connecting CapacityBusbar 10 mm², Rigid 1 …25 mm², Flexible 1 …16 mm²
Wire Stripping LengthTop 11.5 mm, Bottom 15 mm
Terminal TypeScrew Terminals
Rated Operational Voltage400/415 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 9.18 W
Overvoltage CategoryIII
Number of Modules4
Ambient Air TemperatureOperation -5 ... 55 °C, Storage -25 ... 70 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionTerminals IP20, Housing IP40
Pollution Degree2
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Width in Number of Modular Spacings4
Built-In Depth (t2)71.6 mm
Mounting TypeDIN rail
Mounting PositionVertical/Horizontal
StandardsIEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
