How can I get a price quote for ABB 2TAM903000R4411?

You can request a fast quote for ABB 2TAM903000R4411 from Yılsa Engineering. Reference part number YLS12ZNW52PQYM6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2TAM903000R4411 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2TAM903000R4411 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2TAM903000R4411?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

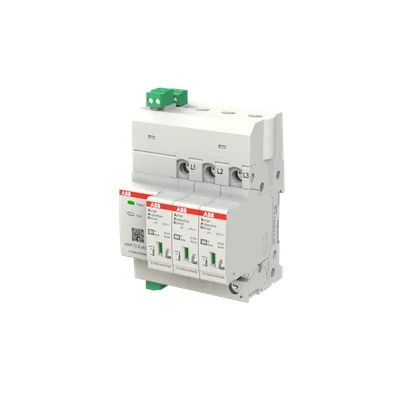

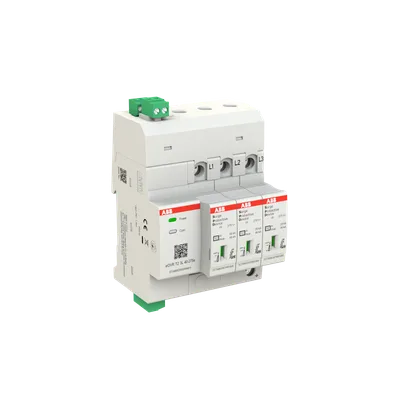

ABB 2TAM903000R4411

Digital SPDs from the eOVR series offer protection against transient overvoltages and tested in accordance with IEC 61643-11. By connecting via RTU Modbus, various types of device information can be obtained and visualized on a dashboard via ABB's InSite energy management system web server. This level of connectivity enables real-time remote monitoring, predictive maintenance and increases the level of protection of the electrical installation against transient overvoltages.

ABBMFR # 2TAM903000R4411SKU # YLS12ZNW52PQYM6

Extended Product TypeeOVR T2 3L 40-275s

Type of Low Voltage Distribution SystemTN-C

Nominal AC Voltage of the System (Uo)230 /400 V

Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V

Short Circuit Withstand Icc100 kA

Arrester ClassII

Have questions?Chat on WhatsApp

About This Product

ABB 2TAM903000R4411

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeeOVR T2 3L 40-275s

Improved Energy Efficiency for CustomersProcess Efficiency - Product improves/optimizes process, Process Efficiency - Product contribute to making customer’s operations more resilient and reliable

Type of Low Voltage Distribution SystemTN-C

Suitable ForTo protect the systems against the transient overvoltage (lightning)

Nominal AC Voltage of the System (Uo)230 /400 V

Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V

Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V

Rated Service Short-Circuit Breaking Capacity (Ics)100 kA

Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 40 kA

Short Circuit Withstand Icc100 kA

Arrester ClassII

Number of Protected Poles3

Number of Poles3P

Position of Neutral TerminalsRight

Transmission StandardOptic

VersionPlug-in

Product TypeQS

Options ProvidedMonitoring : Surge event counter SPD end of life prediction Upstream back up status SPD status Ambient temperature Nominal voltage Surge amplitude Surge time Alarm : Front face blinking LED Leakage current Overvoltage Undervoltage Upstream back up status MOV end of life treshold SPD status

Preventive Maintenance FeatureNo

Status IndicatorYes

Fuse Size3 modular spacing

Cross-Section (Across)Maximum Conductor Solid-Stranded 25 mm², Maximum Conductor Flexible 25 mm²

Communication ProtocolMODBUS

Rated Voltage (Ur)230 V AC

Voltage Protection Level ( Up)(L-PE) 1.4 kV

Degree of ProtectionIP20

Maximum Operating Altitude PermissibleWithout Derating 2000 m

Width in Number of Modular Spacings4.5

Mounting TypeDIN-Rail

StandardsIEC 61643-11 / GB/T 18802.1 / NB/T 10284 / EN 61000-6-2/EN 61000-6-3
