ABB 2CTB815710R3500

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

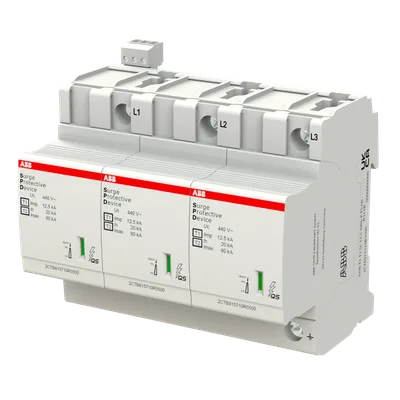

ABB 2CTB815710R3500

OVR T1-T2 3L 12.5-440s P TS QS Surge Protective Device

ABBMFR # 2CTB815710R3500SKU # YLSQ39ZJGHIZJPY

Extended Product TypeOVR T1-T2 3L 12.5-440s P TS QS

Type of Low Voltage Distribution SystemTN-C, IT

Nominal AC Voltage of the System (Uo)400 / 690 V

Temporary Overvoltage Test Value (UT)581 V

Lightning Impulse Current12.5 kA

Short Circuit Withstand Icc100 kA

Share

Have questions?Chat on WhatsApp

About This Product

ABB 2CTB815710R3500 (OVR T1-T2 3L 12.5-440s P TS QS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB815710R3500 — price, stock availability and technical specifications.

ABB 2CTB815710R3500

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeOVR T1-T2 3L 12.5-440s P TS QS

Type of Low Voltage Distribution SystemTN-C, IT

Suitable ForTo protect the systems against the transient overvoltage (lightning)

Nominal AC Voltage of the System (Uo)400 / 690 V

Maximum Continuous Operating Voltage (Uc)(L-PE) 440 V, (L-L) 760 V, (L-N) - V, (N-PE) - V

Temporary Overvoltage Test Value (UT)581 V

Discharge CurrentNominal 20 kA, Maximum 80 kA, Total 240 kA

Impulse CurrentI (imp, 10 / 350 µs) 12.5 kA, I (total, 10 / 350 µs) 37.5 kA

Lightning Impulse Current12.5 kA

Short Circuit Withstand Icc100 kA

Follow Current Extinction Capacity If (I fi)(L-N) - kA, (N-PE) - kA

Short-Circuit Protective DevicesCurve B Breakers ≤ 125 A, Curve C Breakers ≤ 125 A, gL Type Fuses ≤ 160 A, gG Type Fuses ≤ 160 A

Arrester ClassI, II

Number of Protected Poles3

Number of Auxiliary Contacts NC1

Number of Auxiliary Contacts NO1

Number of Poles3P

VersionPlug-in

Product TypeQS

Options ProvidedIndustry, commercial building

Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A

Preventive Maintenance FeatureYes

Status IndicatorYes

Fuse Size6 modular spacing

Voltage Protection Level ( Up)(L-N) - kV, (N-PE) - kV, (L-PE) 2 kV

Power LossTotal 121 mW

Degree of ProtectionIP20

Maximum Operating Altitude PermissibleWithout Derating 5000

Width in Number of Modular Spacings6

Mounting TypeDIN-Rail

StandardsIEC 61643-11 / EN 61643-11
