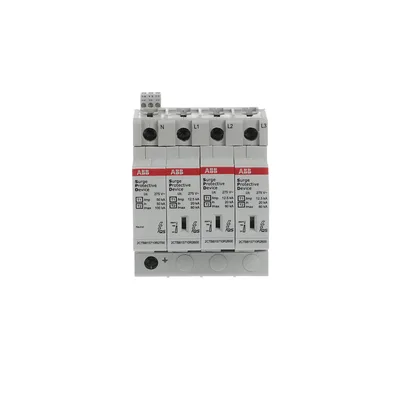

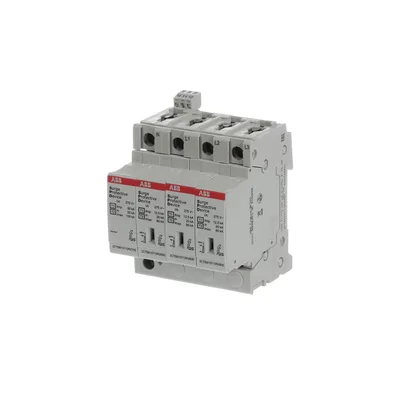

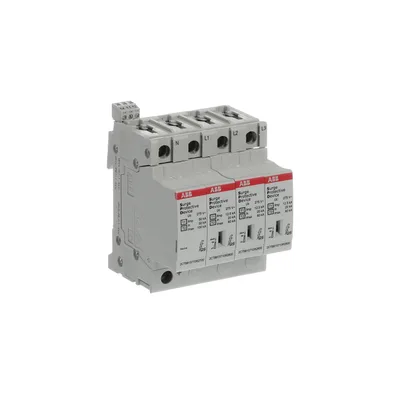

ABB 2CTB815710R0900
Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
Extended Product TypeOVR T1-T2 N3 12.5-275s P TS QS
Type of Low Voltage Distribution SystemTT, TN-S
Nominal AC Voltage of the System (Uo)230 / 400 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V
Lightning Impulse Current12.5 kA
Short Circuit Withstand Icc100 kA
About This Product
Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
ABB 2CTB815710R0900
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T1-T2 N3 12.5-275s P TS QS
Type of Low Voltage Distribution SystemTT, TN-S
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)230 / 400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V, (L-L) 440 V, (L-N) 275 V, (N-PE) 255 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V
Discharge CurrentNominal 20 kA, Maximum 80 kA, Total 100 kA
Impulse CurrentI (imp, 10 / 350 µs) 12.5 kA, I (total, 10 / 350 µs) 50 kA
Lightning Impulse Current12.5 kA
Short Circuit Withstand Icc100 kA
Follow Current Extinction Capacity If (I fi)(L-N) - kA, (N-PE) 0.1 kA
Short-Circuit Protective DevicesCurve B Breakers ≤ 125 A, Curve C Breakers ≤ 125 A, gL Type Fuses ≤ 160 A, gG Type Fuses ≤ 160 A
Arrester ClassI, II
Number of Protected Poles4
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Poles4P
Position of Neutral TerminalsLeft
VersionPlug-in
Product TypeQS
Options ProvidedIndustry, commercial building
Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A
Preventive Maintenance FeatureYes
Status IndicatorYes
Fuse Size4 modular spacing
Voltage Protection Level ( Up)(L-N) 1.4 kV, (N-PE) 1.4 kV, (L-PE) 1.5 kV
Power LossTotal 63 mW
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings4
Mounting TypeDIN-Rail
StandardsIEC 61643-11 / EN 61643-11
