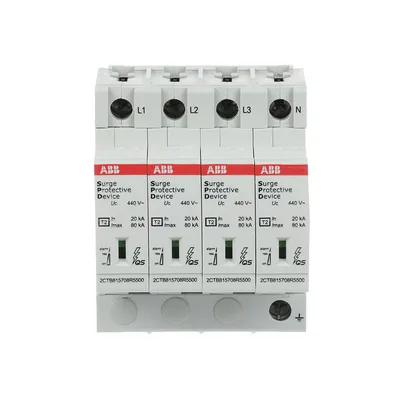

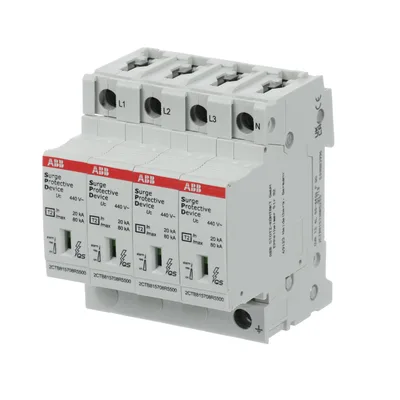

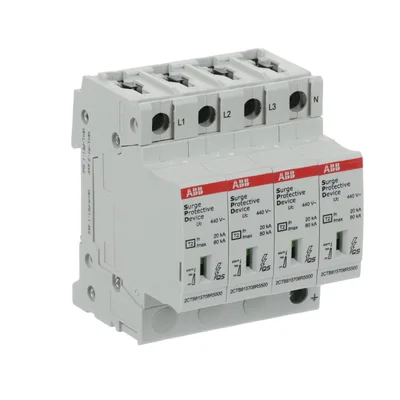

ABB 2CTB815708R5200
OVR T2 4L 80-440s P QS Surge Protective Device
Extended Product TypeOVR T2 4L 80-440s P QS
Type of Low Voltage Distribution SystemTN-S, IT
Nominal AC Voltage of the System (Uo)400 / 690 V
Temporary Overvoltage Test Value (UT)581 V
Impulse CurrentI (imp, 10 / 350 µs) 6.25 kA
Short Circuit Withstand Icc100 kA
About This Product
ABB 2CTB815708R5200 (OVR T2 4L 80-440s P QS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB815708R5200 — price, stock availability and technical specifications.
ABB 2CTB815708R5200
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2 4L 80-440s P QS
Type of Low Voltage Distribution SystemTN-S, IT
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)400 / 690 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 440 V
Temporary Overvoltage Test Value (UT)581 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 80 kA
Impulse CurrentI (imp, 10 / 350 µs) 6.25 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles4
Number of Poles4P
Number of Conductors4
Position of Neutral TerminalsRight
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedIndustry, commercial building
Preventive Maintenance FeatureYes
Status IndicatorYes
Fuse Size4 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm², Maximum Conductor Flexible 25 mm²
Rated Voltage (Ur)400 V AC
Voltage Protection Level ( Up)3.6 kV, (L-N) 3.6 kV, (N-PE) 1.8 kV
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings4
Mounting TypeDIN-Rail
StandardsIEC 61643-11 / EN 61643-11
Documents & CAD
Documents 13
