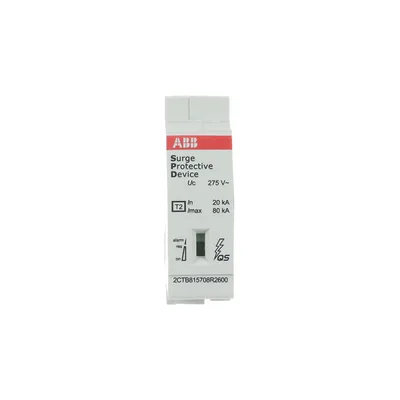

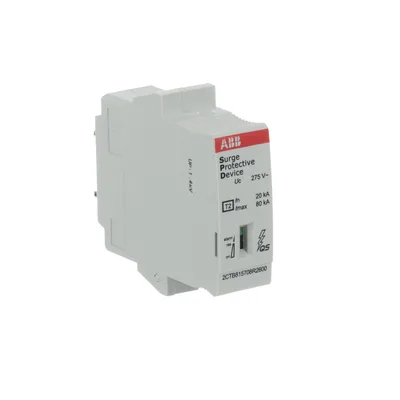

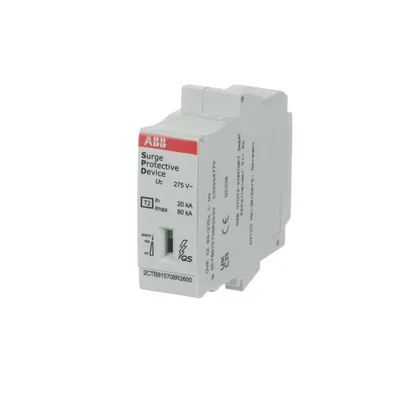

ABB 2CTB815708R2600
OVR T2 80-275s C QS Surge Protective Device
Extended Product TypeOVR T2 80-275s C QS
Carbon FootprintFull Lifecycle 17.5 kg CO₂ eq
Type of Low Voltage Distribution SystemTT, TN-C, TN-S
Nominal AC Voltage of the System (Uo)230 / 400 V
Temporary Overvoltage Test Value (UT)337 V
Impulse CurrentI (imp, 10 / 350 µs, L-N) 2 kA
About This Product
ABB 2CTB815708R2600 (OVR T2 80-275s C QS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB815708R2600 — price, stock availability and technical specifications.
ABB 2CTB815708R2600
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2 80-275s C QS
Carbon FootprintFull Lifecycle 17.5 kg CO₂ eq
Type of Low Voltage Distribution SystemTT, TN-C, TN-S
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)230 / 400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V
Temporary Overvoltage Test Value (UT)337 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 80 kA
Impulse CurrentI (imp, 10 / 350 µs, L-N) 2 kA
Short-Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles1
Number of Poles1P
Number of Conductors1
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedReplacement Cartridge
Preventive Maintenance FeatureYes
Status IndicatorYes
Fuse Size1 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm², Maximum Conductor Flexible 25 mm²
Rated Voltage (Ur)230 V AC
Voltage Protection Level ( Up)1.4 kV, (L-N) 1.4 kV, (N-PE) 1.4 kV
Power LossTotal 28 mW
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings1
Mounting TypeDIN-Rail
StandardsIEC 61643-11 / EN 61643-11
