ABB 2CTB815708R0600

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

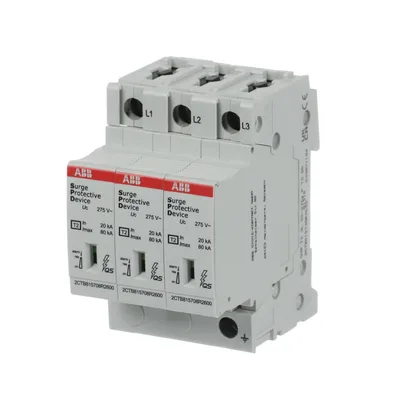

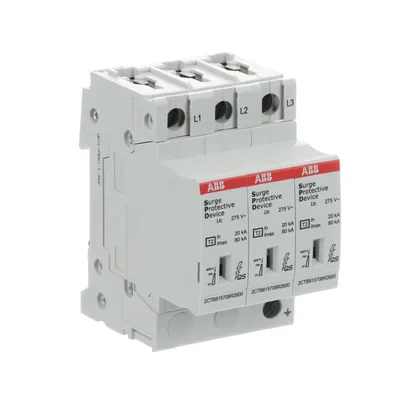

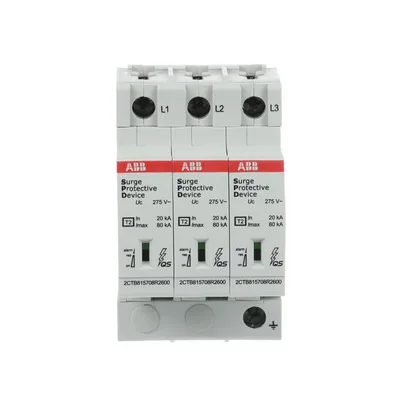

ABB 2CTB815708R0600

OVR T2 3L 80-275s P TS QS Surge Protective Device

ABBMFR # 2CTB815708R0600SKU # YLSTEJVLTHOB3LB

Extended Product TypeOVR T2 3L 80-275s P TS QS

Carbon FootprintFull Lifecycle 33.9 kg CO₂ eq

Type of Low Voltage Distribution SystemTN-C

Nominal AC Voltage of the System (Uo)230 / 400 V

Temporary Overvoltage Test Value (UT)337 V

Impulse CurrentI (imp, 10 / 350 µs, L-N) 6.25 kA

Share

Have questions?Chat on WhatsApp

About This Product

ABB 2CTB815708R0600 (OVR T2 3L 80-275s P TS QS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB815708R0600 — price, stock availability and technical specifications.

ABB 2CTB815708R0600

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeOVR T2 3L 80-275s P TS QS

Carbon FootprintFull Lifecycle 33.9 kg CO₂ eq

Type of Low Voltage Distribution SystemTN-C

Suitable ForTo protect the systems against the transient overvoltage (lightning)

Nominal AC Voltage of the System (Uo)230 / 400 V

Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V

Temporary Overvoltage Test Value (UT)337 V

Rated Service Short-Circuit Breaking Capacity (Ics)100 kA

Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 80 kA

Impulse CurrentI (imp, 10 / 350 µs, L-N) 6.25 kA

Short-Circuit Withstand Icc100 kA

Arrester ClassII

Number of Protected Poles3

Number of Auxiliary Contacts NC1

Number of Auxiliary Contacts NO1

Number of Poles3P

Number of Conductors3

Transmission StandardOptic

VersionPlug-in

Product TypeQS

Options ProvidedIndustry, commercial building

Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A

Preventive Maintenance FeatureYes

Status IndicatorYes

Fuse Size4 modular spacing

Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm², Maximum Conductor Flexible 25 mm²

Rated Voltage (Ur)230 V AC

Voltage Protection Level ( Up)1.4 kV, (L-N) 1.4 kV, (N-PE) 1.4 kV

Power LossTotal 49 mW

Degree of ProtectionIP20

Maximum Operating Altitude PermissibleWithout Derating 5000

Width in Number of Modular Spacings3

Mounting TypeDIN-Rail

StandardsIEC 61643-11 / EN 61643-11

Documents & CAD

Documents 13

CertificateEPD SPD T2 Global market - ABBG-00600-V01.01-ENPDF·230 KB·English

Instruction ManualOVR QS T2 100&120kA installation manualPDF·437 KB·English

DatasheetDatasheet OVR T2 4L 80-350 PPDF·396 KB·English

DatasheetDatasheet OVR T2 4L 80-350 P TSPDF·398 KB·English

DatasheetDatasheet OVR T2 3N 80-350 PPDF·392 KB·English

DatasheetDatasheet OVR T2 3N 80-350 P TSPDF·395 KB·English

Instruction ManualOperation Manual of AC 350V OVR （T2 and T1 12.5kA series）PDF·301 KB·English

DatasheetDatasheet OVR T2 N 120-440s P QSPDF·250 KB·English

DatasheetDatasheet OVR T2 N 120-440s C QSPDF·250 KB·English

DatasheetDatasheet OVR T2 N 120-255s C QSPDF·250 KB·English

CertificateEnd of life instruction of OVR QS seriesPDF·590 KB·English

CertificateEPD declaration of OVR T1-T2 QS and OVR T2 QSPDF·462 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
