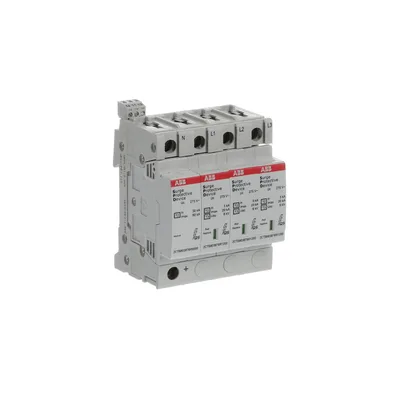

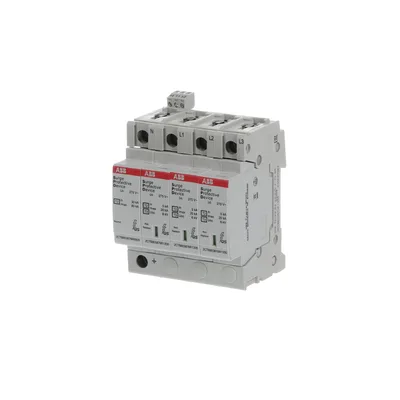

ABB 2CTB803873R1400
OVR T2-T3 N3 20-275 P TS QS Surge Protective Device
Extended Product TypeOVR T2-T3 N3 20-275 P TS QS
Type of Low Voltage Distribution SystemTT, TN-S
Nominal AC Voltage of the System (Uo)230 / 400 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V
Impulse CurrentI (imp, 10 / 350 µs) 2 kA
Short Circuit Withstand Icc100 kA
About This Product
ABB 2CTB803873R1400 (OVR T2-T3 N3 20-275 P TS QS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB803873R1400 — price, stock availability and technical specifications.
ABB 2CTB803873R1400
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2-T3 N3 20-275 P TS QS
Type of Low Voltage Distribution SystemTT, TN-S
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)230 / 400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V, (N-PE) 1200 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 5 kA, I (max, 8 / 20 µs) 20 kA
Impulse CurrentI (imp, 10 / 350 µs) 2 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII, III
Number of Protected Poles4
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Poles4P
Number of Conductors4
Position of Neutral TerminalsLeft
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedResidential or other where accurate protection is needed.
Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size4 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 25 mm², Maximum Conductor Flexible 16 mm²
Rated Voltage (Ur)400 V AC
Voltage Protection Level ( Up)1.4 kV, (L-N) 0.9 kV, (N-PE) 1.4 kV
Power LossTotal 29 mW
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings4
Mounting TypeDIN-Rail
StandardsIEC 61643-11 / EN 61643-11
