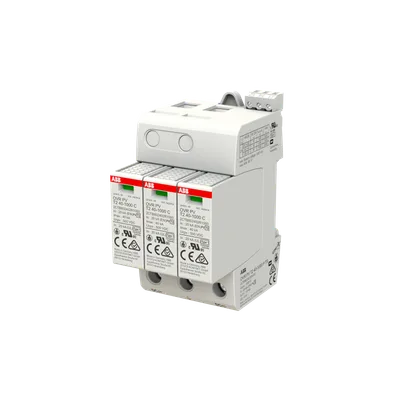

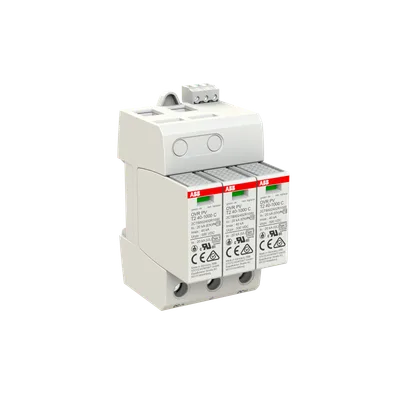

ABB 2CTB802401Z1000

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CTB802401Z1000

Type 2 SPDs for Photovoltaic applications are capable of discharging the lightning currents within an electrical system resulting from indirect lightning events. They have effective voltage protectionratings keeping damaging voltage peaks from exceeding the withstand voltages of the protected equipment.

ABBMFR # 2CTB802401Z1000SKU # YLSDCJO09YWJQRC
Extended Product TypeOVR PV T2 40-1000 P TS BULK
Voltage Rating DC1000 V
Maximum Power Point (MPP) Voltage1000 V
Short Circuit Withstand Icc10 kA
Arrester ClassII
Number of Protected Poles2
Share
Have questions?Chat on WhatsApp

About This Product

Type 2 SPDs for Photovoltaic applications are capable of discharging the lightning currents within an electrical system resulting from indirect lightning events. They have effective voltage protectionratings keeping damaging voltage peaks from exceeding the withstand voltages of the protected equipment.

ABB 2CTB802401Z1000

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeOVR PV T2 40-1000 P TS BULK
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Voltage Rating DC1000 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 1000 V, (L-L) 1000 V, (L-N) 0 V, (N-PE) 0 V
Maximum Power Point (MPP) Voltage1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)11 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc10 kA
Arrester ClassII
Number of Protected Poles2
Number of Poles3P
Transmission StandardOptic
VersionPlug-in
Product TypeT2
Options ProvidedSolar
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size3 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm², Maximum Conductor Flexible 25 mm²
Rated Voltage (Ur)1000 V DC
Voltage Protection Level ( Up)4 kV
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 1000 V, (L-L) 1000 V, (L-N) 0 V, (N-PE) 0 V
Voltage Protection Rating UL/CSA (VPR)Lpe 3.750 kV, Ll 3.740 kV, Ln 0 kV, Npe 3.740 kV
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Width in Number of Modular Spacings3
Mounting TypeDIN-Rail
StandardsIEC 61 643-31 / UL 1449 5th ed

Documents & CAD

Documents 7

CertificateUL certificate E524792PDF·283 KB·English
Instruction ManualInstallation instructions OVR PV T2 40-1000 P (TS), OVR PV T2 40-1500 PPDF·2.8 MB·English
DatasheetDatasheet_ OVR PV T2 40 -1500 P Surge Protective Devices - US VersionPDF·280 KB·English
DatasheetData sheet_OVR PV T2 40 -1500 P TS Surge Protective Devices - US versionPDF·280 KB·English
DatasheetDatasheet_ OVR PV T2 40 -1000 P TS Surge Protective Devices - US VersionPDF·280 KB·English
DatasheetDatasheet_ OVR PV T2 40 -1000 P Surge Protective Devices - US VersionPDF·228 KB·English
Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
