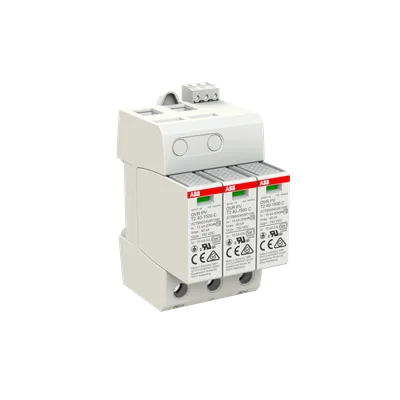

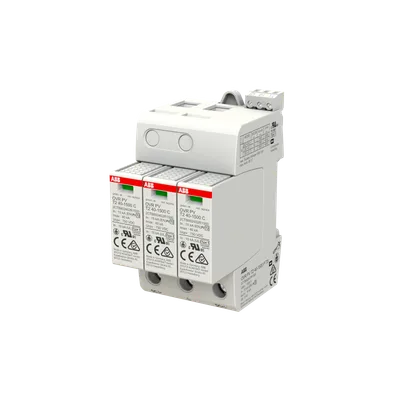

ABB 2CTB802401R1500
OVR PV T2 40-1500 P TS Surge Protective Device
Extended Product TypeOVR PV T2 40-1500 P TS
Voltage Rating DC1500 V
Maximum Power Point (MPP) Voltage1500 V
Short Circuit Withstand Icc10 kA
Arrester ClassII
Number of Protected Poles2
About This Product
ABB 2CTB802401R1500 (OVR PV T2 40-1500 P TS Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB802401R1500 — price, stock availability and technical specifications.
ABB 2CTB802401R1500
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR PV T2 40-1500 P TS
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Voltage Rating DC1500 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 1500 V, (L-L) 1500 V, (L-N) 0 V, (N-PE) 0 V
Maximum Power Point (MPP) Voltage1500 V
Rated Service Short-Circuit Breaking Capacity (Ics)10 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc10 kA
Arrester ClassII
Number of Protected Poles2
Number of Auxiliary Contacts NO1
Number of Poles3P
Transmission StandardOptic
VersionPlug-in
Options ProvidedSolar
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size3 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm², Maximum Conductor Flexible 25 mm²
Rated Voltage (Ur)15000 V DC
Voltage Protection Level ( Up)5 kV
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 1500 V, (L-L) 1500 V, (L-N) 0 V, (N-PE) 0 V
Voltage Protection Rating UL/CSA (VPR)Lpe 4 kV, Ll 4 kV
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Mounting TypeDIN-Rail
StandardsIEC 61643-31, UL14419 Ed5
