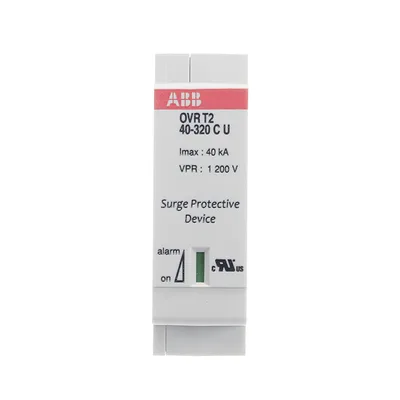

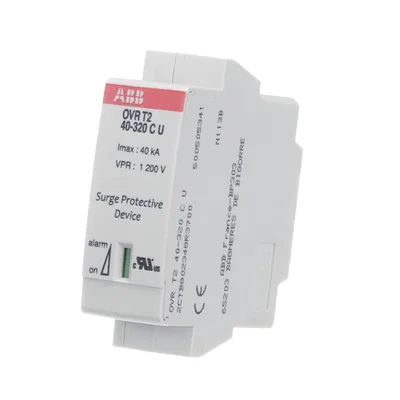

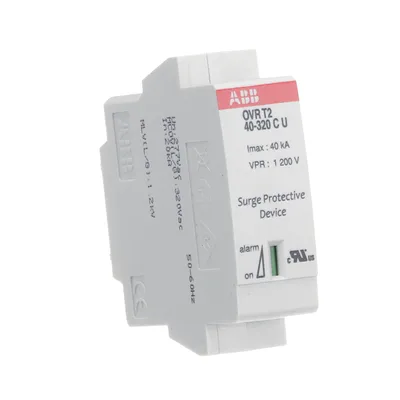

ABB 2CTB802348R3700
OVR T2 40-320 C U Surge Protective Device
Extended Product TypeOVR T2 40-320 C U
Nominal AC Voltage of the System (Uo)277 V
Short Circuit Withstand Icc200 kA
Arrester ClassII
Number of Protected Poles1
Number of Poles1P
About This Product
ABB 2CTB802348R3700 (OVR T2 40-320 C U Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB802348R3700 — price, stock availability and technical specifications.
ABB 2CTB802348R3700
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2 40-320 C U
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)277 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 320 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA, I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc200 kA
Arrester ClassII
Number of Protected Poles1
Number of Poles1P
Number of Conductors1
Transmission StandardOptic
VersionPlug-in
Options ProvidedReplacement Cartridge
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size4 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 25 mm², Maximum Conductor Flexible 16 mm²
Rated Voltage (Ur)277 V AC
Voltage Protection Level ( Up)1.2 kV, (L-N) 1.2 kV
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 350 V, (L-L) 350 V, (L-N) 350 V, (N-PE) - V
Maximum Operating Voltage UL/CSA320 V
Type of Low Voltage Distribution System UL/CSASingle Phase
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings1
Mounting TypeDIN-Rail
StandardsUL 1449 Ed3
