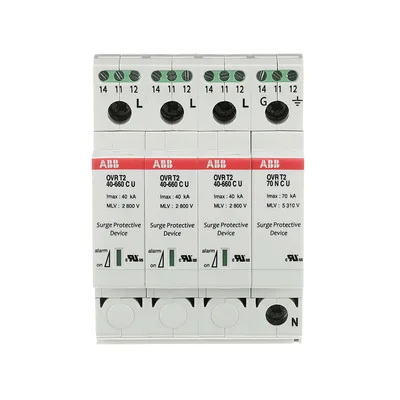

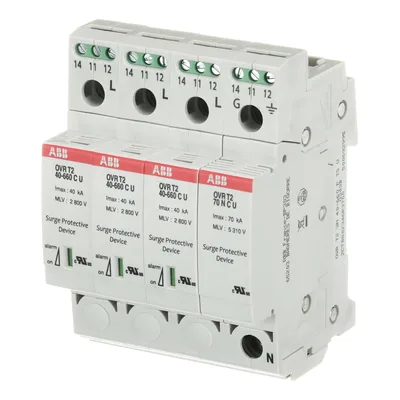

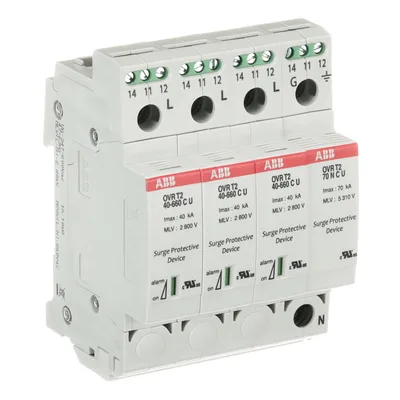

ABB 2CTB802346R3700
OVR T2 3N 40-660 P TS U Surge Protective Device
Extended Product TypeOVR T2 3N 40-660 P TS U
Nominal AC Voltage of the System (Uo)600 V
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles4
Number of Auxiliary Contacts NC4
About This Product
ABB 2CTB802346R3700 (OVR T2 3N 40-660 P TS U Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB802346R3700 — price, stock availability and technical specifications.
ABB 2CTB802346R3700
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2 3N 40-660 P TS U
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)600 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 660 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 10 kA, I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles4
Number of Auxiliary Contacts NC4
Number of Auxiliary Contacts NO4
Number of Poles4P
Number of Conductors4
Position of Neutral TerminalsRight
Transmission StandardOptic
VersionPlug-in
Options ProvidedResidential, commercial building.
Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size4 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 25 mm², Maximum Conductor Flexible 16 mm²
Short-Circuit Current Rating (SCCR)200 kA
Rated Voltage (Ur)600 V AC
Voltage Protection Level ( Up)2 kV, (L-N) 2 kV, (N-PE) 2 kV
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 680 V, (L-L) 1150 V, (L-N) 680 V, (N-PE) 680 V
Maximum Operating Voltage UL/CSA660 V
Type of Low Voltage Distribution System UL/CSAWye
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings4
Mounting TypeDIN-Rail
StandardsUL 1449 Ed3
