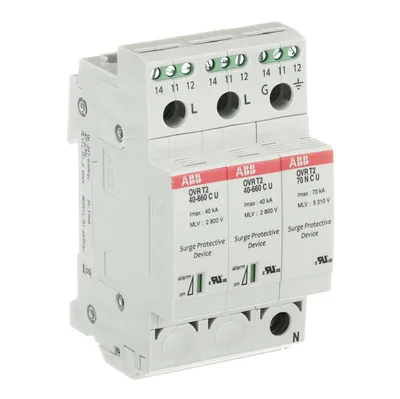

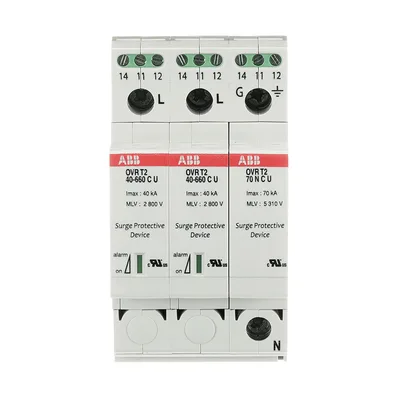

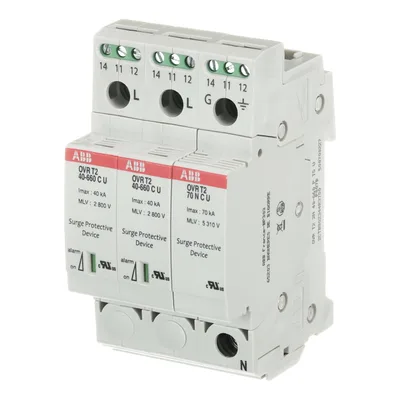

ABB 2CTB802344R3700
OVR T2 2N 40-660 P TS U Surge Protective Device
Extended Product TypeOVR T2 2N 40-660 P TS U
Nominal AC Voltage of the System (Uo)600 V
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles3
Number of Auxiliary Contacts NC1
About This Product
ABB 2CTB802344R3700 (OVR T2 2N 40-660 P TS U Surge Protective Device) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CTB802344R3700 — price, stock availability and technical specifications.
ABB 2CTB802344R3700
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeOVR T2 2N 40-660 P TS U
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)600 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 660 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 10 kA, I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles3
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Poles3P
Number of Conductors3
Transmission StandardOptic
VersionPlug-in
Options ProvidedResidential, commercial building.
Auxiliary Circuit LoadMinimum 12Vdc - 10mA, Maximum 250Vac - 1A
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size3 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 25 mm², Maximum Conductor Flexible 16 mm²
Short-Circuit Current Rating (SCCR)200 kA
Rated Voltage (Ur)600 V AC
Voltage Protection Level ( Up)2 kV, (L-N) 1.9 kV, (N-PE) 1.9 kV
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 680 V, (L-L) 1178 V, (L-N) 680 V, (N-PE) 680 V
Maximum Operating Voltage UL/CSA660 V
Type of Low Voltage Distribution System UL/CSASplit Phase
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings3
Mounting TypeDIN-Rail
StandardsUL 1449 Ed3
