ABB 2CSS255101R0164

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSS255101R0164

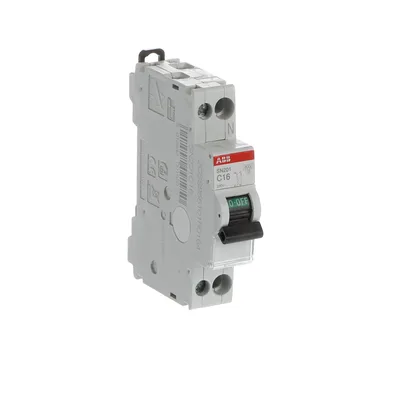

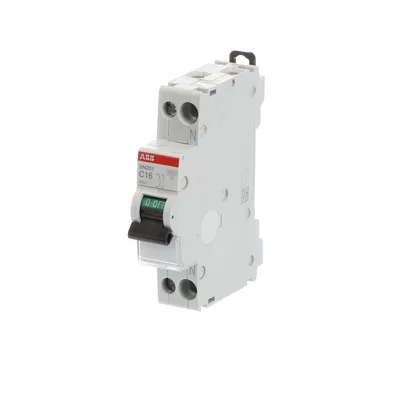

The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right

ABBMFR # 2CSS255101R0164SKU # YLSGI0VR40QMAB4

Extended Product TypeSN201-C16

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Primary Rated Impulse Withstand Voltage4 kV

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Share

Have questions?Chat on WhatsApp

About This Product

The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right

ABB 2CSS255101R0164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSN201-C16

Sustainable Material Content in Packaging (wt. %)Recycled Paper - 00 %, Recycled Cardboard - 79 %

Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV

Primary Rated Impulse Withstand Voltage4 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 6 kA

Power Supply ConnectionArbitrary

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Actuator TypeToggle

Screw Terminal TypeCage Terminal

Accessories AvailableYes

Connecting CapacityFlexible 1 … 10 mm², Rigid 1 … 16 mm²

Wire Stripping Length11 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230 V AC

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Short-Circuit Capacity(230 V) 6 kA

Rated Frequency (f)50 / 60 Hz

Power LossTotal 3.6 W

Overvoltage CategoryIII

Housing MaterialInsulation group II, RAL 7035

Ambient Air TemperatureOperation -25 ... +55 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20

Pollution Degree2

Environmental Conditions28 cycles, ;with 55 °C / 90-96 %, ;and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms

Width in Number of Modular Spacings1

Built-In Depth (t2)69 mm

Mounting PositionAny

StandardsIEC/EN 60898-1

Documents & CAD

Documents 8

Instruction ManualUser manual S200C/SN201 familyPDF·5.0 MB·English

CertificatePEP- SN201 familyPDF·183 KB·English

CertificateEcosolution Product Profile SN201PDF·214 KB·English

CertificateCCC Certificate,Miniature Circuit-breaker,SN201,Made in ItalyPDF·1.6 MB·English

CertificateCQC Certificate,Miniature Circuit-breaker,SN201,Made in ItalyPDF·403 KB·English

CertificateIMQ IT for Serie/Series SN201PDF·494 KB·English

CertificateKEMA NL for Serie/Series SN201PDF·1.4 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CAD Files 3

3D Model

2D Drawing

AutoCAD DXF.dxf · 2.3 MB
