View Details
ABB
2CCF019935R0001
MFR #2CCF019935R0001
SKU #YLSPXMY7YROOLMJ
Photo may not represent actual item. Refer to name and product specs for all details.

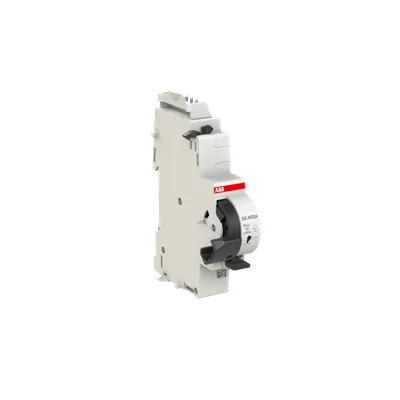

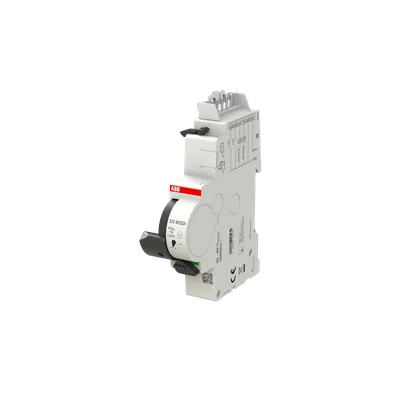

ABB 2CSS201998R0033
Motor operating devices allow the remote control of the coupled device. They are especially suitable in centralized systems (either large size or difficult to access) and whenever multiple daily intervention are needed. Suitable for S200 series, S300P, F200 series up to 100A, F200 B type up to 63 A, DS201, SD200
Extended Product TypeS3C-MOD24
Suitable for Product ClassAuxiliary switch/relay
Mechanical Endurance10000 cycle
Tightening Torque0.4 N·m
Cable Size0.2 … 2.5 mm²
Connecting CapacityFlexible 0.2 ... 2.5 mm²
About This Product
Motor operating devices allow the remote control of the coupled device. They are especially suitable in centralized systems (either large size or difficult to access) and whenever multiple daily intervention are needed. Suitable for S200 series, S300P, F200 series up to 100A, F200 B type up to 63 A, DS201, SD200
ABB 2CSS201998R0033
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeS3C-MOD24
Suitable ForS200, S300P, F200 up to 100A, F200 B Type up to 63A, DS201, SD200
Suitable for Product ClassAuxiliary switch/relay
Mechanical Endurance10000 cycle
Tightening Torque0.4 N·m
Cable Size0.2 … 2.5 mm²
Connecting CapacityFlexible 0.2 ... 2.5 mm²
Wire Stripping Length5 mm
Terminal TypePlug-in Connection
Rated Voltage (Ur)24 … 48 V
Rated Operational Voltage24 ... 48 V AC/DC
Supply Voltage24 … 48 V AC/DC V
Input Voltage TypeAC/DC
Power Consumption (@Pcons)<28 V·A
Overvoltage CategoryIII
Number of Modules1
Ambient Air TemperatureOperation -25 …+60 °C
Degree of ProtectionHousing IP40, Terminals IP20
Pollution Degree2
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Width in Number of Modular Spacings1
Documents & CAD
Documents 5
CAD Files 1
2D Drawing
