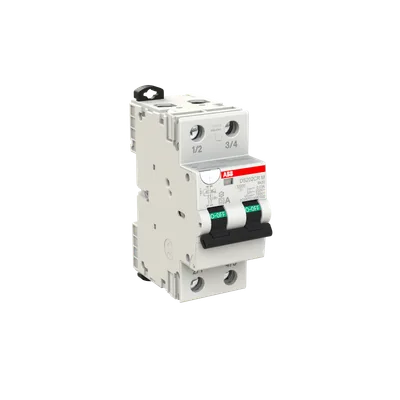

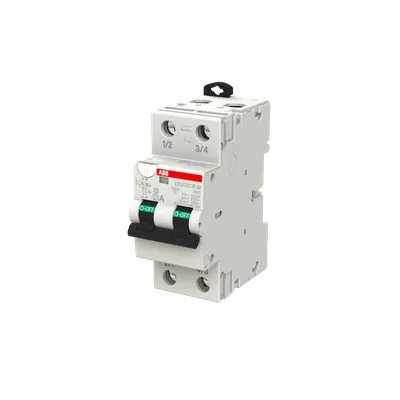

ABB 2CSR772140R1202
The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts.
Extended Product TypeDS202CR M Bk20 A30
Type of Residual CurrentType A
Test Voltage (Ut)Minimum 150 V, Maximum 254 V
Maximum Surge Current0.25 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
About This Product
The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts.
ABB 2CSR772140R1202
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS202CR M Bk20 A30
Type of Residual CurrentType A
Test Voltage (Ut)Minimum 150 V, Maximum 254 V
Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA
Maximum Surge Current0.25 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 operations
Mechanical Endurance20000 operations
Number of Protected Poles2
Number of Poles2P
Fault IndicationBlue Flag on Window
Position of Neutral TerminalsRight, Left
Tightening Torque4 N·m
Accessory TypeAuxiliary contact, Signal contact / auxiliary contact
Earthing Switch TypeUndelayed
Accessories AvailableYes
Connecting CapacityBusbar 10…10 mm², Flexible 1...25 mm², Rigid Solid 1…35 mm²
Rated Cross-Section1 - Solid-Core 1 … 35 mm², 4 - Multi-Wired 1 … 25 mm²
Wire Stripping Length11 mm
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)20 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Frequency (f)50 Hz
Power LossTotal 5.04 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 55 °C
Degree of ProtectionIP20
Pollution Degree3
Environmental Conditions28 cycle, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Width in Number of Modular Spacings2
Built-In Depth (t2)72 mm
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC/EN 61009-1, IEC/EN 61009-2-1
