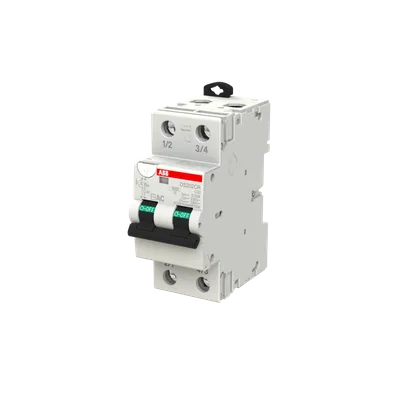

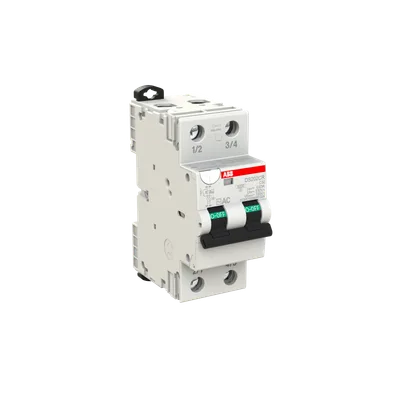

ABB 2CSR752040R1324

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSR752040R1324

The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts.

ABBMFR # 2CSR752040R1324SKU # YLS2ALBIBWNGNK4

Extended Product TypeDS202CR C32 AC30

Type of Residual CurrentType AC

Test Voltage (Ut)Minimum 150 V, Maximum 254 V

Maximum Surge Current0.25 kA

Power Supply ConnectionArbitrary

Energy Limiting Class3

Share

Have questions?Chat on WhatsApp

About This Product

The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts.

ABB 2CSR752040R1324

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS202CR C32 AC30

Type of Residual CurrentType AC

Test Voltage (Ut)Minimum 150 V, Maximum 254 V

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Maximum Surge Current0.25 kA

Power Supply ConnectionArbitrary

Energy Limiting Class3

Electrical Endurance10000 operations

Mechanical Endurance20000 operations

Number of Protected Poles2

Number of Poles2P

Fault IndicationBlue Flag on Window

Position of Neutral TerminalsRight, Left

Tightening Torque4 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact

Earthing Switch TypeUndelayed

Accessories AvailableYes

Connecting CapacityBusbar 10…10 mm², Flexible 1...25 mm², Rigid Solid 1…35 mm²

Rated Cross-Section1 - Solid-Core 1 … 35 mm², 4 - Multi-Wired 1 … 25 mm²

Wire Stripping Length11 mm

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)32 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossTotal 7.60 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -5 … 55 °C

Degree of ProtectionIP20

Pollution Degree3

Environmental Conditions28 cycle, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Width in Number of Modular Spacings2

Built-In Depth (t2)72 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 61009-1, IEC/EN 61009-2-1

Documents & CAD

Documents 6

Instruction ManualDS202CR / DSH202CR RCBO 2P - EoL End of Life InstructionPDF·1.0 MB·English

Instruction ManualDS202CR / DSH202CR, AEG DPC60 / DPC100 RCBO 2P - Mounting and operating instructionsPDF·5.3 MB·English

CertificateDS202CR, DNV ApprovalPDF·473 KB·English

CertificateDS202CR, NF approvalPDF·701 KB·English

CertificateDS202CR, RCM Australia certificatePDF·2.0 MB·English

CertificateDS202CR, IMQ approval certificatePDF·514 KB·English

CAD Files 1

3D Model

STEP.stp · 16.6 MB
